SUPER-DUTY PLOWS

7'6" Steel Full-Trip Super-Duty

Product Number: STB03166


Available SUPER-DUTY PLOWS:

Where to Buy Product Selector



The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

BOSS Super-Duty straight-blade plows RESTORE ORDER with unsurpassed reliability and strength. BOSS SmartShield baked-on powdercoat paint finishes with zinc primer resist corrosion. Heavy-duty push frames and push frame attachment bars and optimized blade curl are standard on every BOSS straight-blade. For added strength to take on nature’s worst, BOSS Super-Duty straight-blades boast reinforced moldboards for increased blade rigidity and increased durability.
  • SL3 L.E.D. HEADLIGHTS - 100% L.E.D. system with nearly double the light output of standard halogen systems
  • SMARTSHIELD PAINT - Sets the standard for supreme quality, corrosion protection, and lasting durability.
  • OPTIONAL D-FORCE - Improve your backdragging abilities with D-Force!

Product Features

View All Features
SL3 L.E.D. With Ice Shield

SL3 L.E.D. With Ice Shield

SL3 headlight package, standard on every BOSS truck plow, shines brighter and farther than traditional halogen packages and is equipped with Ice Shield Technology. With best-in-class 100% LED lighting, integrated with Ice Shield Technology to prevent snow and ice build-up on the lens, these headlights use half the amperage of halogen systems and have an 8-10 year life expectancy. The SL3 headlights are also 40% smaller than SmartLight2 lights and yet much more powerful with the signature BOSS premium look you expect.

Learn More
SmartHitch2

SmartHitch2

Designed to be simple and easy to use. Flip, plug, click. The three-step attachment process makes it easy to switch between plows.
SmartShield

SmartShield

Made to last the SmartShield paint system delivers superior corrosion protection and a long-lasting, high-gloss shine.

Learn More
SmartTouch2

SmartTouch2

Advanced control technology combined with ergonomic control features and large backlit buttons make BOSS controls highly intuitive and easy to use. Attach the versatile SmartTouch2 Handheld Control to a pedestal mount or mount it on your dash (with or without handle).
Discover the functions of BOSS SmartTouch2 and Joystick controllers with this easy-to-follow guide.

Learn More
Chainless Hydraulic Lift

Chainless Hydraulic Lift

The chainless hydraulic cylinder lifting system from BOSS uses a chainless, hydraulic lift system, which greatly reduces snowplow bounce and provides full float capabilities.
Reinforced Moldboard

Reinforced Moldboard

Diagonal cross-bracing and formed bottom channel increase blade rigidity.
Cast-Iron Plow Shoes

Cast-Iron Plow Shoes

Provide extended wear resistance compared to steel shoes.
Blade Shock Absorbers

Blade Shock Absorbers

Stabilizes the trip going forward and cushions the trip return.
Optional D-Force

Optional D-Force

Improve backdragging performance by adding D-Force to your new Super-Duty, Standard-Duty and HTX straight-blade plow, or your new 8'2" DXT and 9'2" DXT v-blade plow. D-Force improves scraping performance while backdragging by maintaining a consistent hydraulic down force powered by a hydraulic accumulator. D-Force is an optional accessory on new truck plow purchases and must be added at the time of purchase. D-Force includes D-Force specific plow box and controller. Retrofit kits are not available. (Excludes EXT, Heavy-Duty, Trip-Edge and Drag Pro plows.)

Learn More
2 Year Limited Warranty

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More
BOSS 500 HR Chrome Plated Cylinders

BOSS 500 HR Chrome Plated Cylinders

Made to last, our 500-hour rated chromium-plated angle cylinders replace other, less effective applications. Delivering advanced corrosion protection so you can continue Restoring Order for years to come.

Specifications 7'6" Steel Full-Trip Super-Duty 8' Steel Full-Trip Super-Duty 8'6" Steel Full-Trip Super-Duty 9' Steel Full-Trip Super-Duty 7'6" Poly Full-Trip Super-Duty 7'6" Steel Trip-Edge Super-Duty 8' Steel Trip-Edge Super-Duty 9' Steel Trip-Edge Super-Duty 8' Stainless Steel Trip-Edge Super-Duty 9' Stainless Steel Trip-Edge Super-Duty
Angle Cylinders 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm)
Attachment System SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2
Blade Height 29 in (74 cm) 29 in (74 cm) 29 in (74 cm) 29 in (74 cm) 29 in (74 cm) 31 in (79 cm) 31 in (79 cm) 31 in (79 cm) 31 in (79 cm) 31 in (79 cm)
Blade Material Steel Steel Steel Steel Poly Steel Steel Steel Stainless Steel Stainless Steel
Blade Size 7 ft. 6 in. 8 ft. 8 ft. 6 in. 9 ft. 7 ft. 6 in. 7 ft. 6 in. 8 ft. 9 ft. 8 ft. 9 ft.
Blade Thickness 11-ga Steel 11-ga Steel 11-ga Steel 11-ga Steel 0.375 in. (0.95 cm) Poly 11-ga Steel 11-ga Steel 11-ga Steel 14-ga 304 Stainless 14-ga 304 Stainless
Blade Width | Curb Guard Width 90 in. (229 cm) 96 in. (244 cm) 102 in. (259 cm) 108 in. (274 cm) 90 in. (229 cm) 90 in. (229 cm) 96 in. (244 cm) 108 in. (274 cm) 96 in. (244 cm) 108 in. (274 cm)
Cutting Edge 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) High Performance 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm)
D-Force Optional Optional Optional Optional Optional
Lift Cylinder 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)
Lighting SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology
Plow Shoes Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
Plow Type Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade
Plowing Width at 30 degree Angle 78" (198 cm) 83" (211 cm) 88" (224 cm) 93 1/2" (238 cm) 78" (198 cm) 78" (198 cm) 83" (211 cm) 93 1/2" (238 cm) 83" (211 cm) 93 1/2" (238 cm)
Reinforcement Ribs 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 6 Vertical, 2 Diagonal 6 Vertical, 2 Diagonal 8 Vertical, 2 Diagonal 6 Vertical, 2 Diagonal 8 Vertical, 2 Diagonal
Shock Absorber 1 1 1 1 1
Trip Mechanism Full-Trip Full-Trip Full-Trip Full-Trip Full-Trip Trip-Edge Trip-Edge Trip-Edge Trip-Edge Trip-Edge
Trip Springs 4 4 4 4 4 4 4 4 4 4
Truck Applications 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton
Vehicle Truck Truck Truck Truck Truck Truck Truck Truck Truck Truck
Weight 680 lbs / 308 kg 698 lbs / 317 kg 720 lbs / 327 kg 742 lbs / 337 kg 706 lbs / 320 kg 772 lbs / 350 kg 788 lbs / 357 kg 827 lbs / 375.12 kg 849 lbs / 385 kg 897 lbs / 407 kg

Accessories

7'6" Straight Blade Turf Defender

Product Number: STB27701

$250.00 MSRP

BOSS Rotating LED Beacon

Product Number: MSC25039

$214.00 MSRP

Straight Blade Curb Guard Kit, Passenger Side

Product Number: STB03394

$199.00 MSRP

Straight Blade Curb Guard Kit, Driver Side

Product Number: STB03395

$199.00 MSRP

Straight Blade Emergency Parts Kit

Product Number: STB16187

$420.00 MSRP

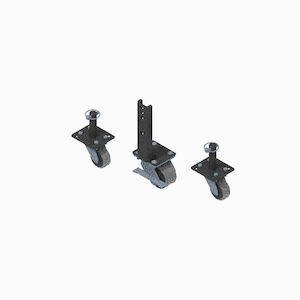

Standard & Super-Duty Straight Blade Caster Kit

Product Number: MSC09215

$324.00 MSRP

Straight-Blade SmartTouch2 Controller

Product Number: STB09602

$360.00 MSRP

Straight-Blade Joystick Controller

Product Number: STB03191

$330.00 MSRP

Pedestal Mount SmartTouch2 Kit

Product Number: MSC09658

$154.00 MSRP

SmartTouch2 Control Dash Mount Kit

Product Number: MSC09660

$71.00 MSRP

13 Pin connector Plug Lock

Product Number: MSC16185

$21.00 MSRP

Parts

Cast Iron Plow Shoe w/ Hardware

Product Number: MSC01570

$64.34 MSRP
Where to Buy

Hydraulic Hose 3/8" x 34", 3/8MP x 1/4MP

Product Number: HYD01810

$36.75 MSRP

Hydraulic Hose 1/4" x 15-1/2", 1/4MP x 1/4MP

Product Number: HYD01695

$19.47 MSRP

Hydraulic Hose 1/4" x 18", 3/8MOR x 1/4MP

Product Number: HYD09922

$29.17 MSRP

Valve, Cartridge, Lift/Angle SAE#8

Product Number: HYD01637

$104.96 MSRP

Valve, Cartridge, SmartHitch

Product Number: HYD07047

$94.27 MSRP

Motor Kit 12V

Product Number: HYD09328

$372.45 MSRP

Power Unit Solenoid Kit

Product Number: HYD01633

$46.71 MSRP
Where to Buy

13 Pin Pigtail Connector - Plow Side

Product Number: MSC04754

$73.17 MSRP

13 Pin Pigtail Connector - Vehicle Side

Product Number: MSC04753

$73.17 MSRP

Trip/ Return Spring 14 1/2"

Product Number: MSC01509

$34.18 MSRP

SmartHitch Torsion Spring Kit (QTY 2)

Product Number: MSC05076

$17.97 MSRP

Blade Guide Kit (2) Guides w/ Hardware

Product Number: MSC01870

$32.24 MSRP

FLUID,HYDRAULIC, 1 CASE OF 4 GALLONS

Product Number: HYD01688X001

$166.45 MSRP

Hydraulic Fluid 1 Case of 12 Quarts

Product Number: HYD01704X001

$149.79 MSRP
Where to Buy

Smart Shield Blade Decal

Product Number: MSC01874

$3.45 MSRP

Blade Warning Decal

Product Number: MSC01868

$2.55 MSRP

Attachment Decal RT3 Straight Blade

Product Number: MSC06354

$3.45 MSRP
Where to Buy

Super-Duty Front of Blade Decal

Product Number: MSC05088

$8.53 MSRP

CYLINDER,ANGLE,STRAIGHT BLADE,500 HR

Product Number: HYD19031

$233.81 MSRP

Lift Cylinder RT3, Repairable

Product Number: HYD09430

$221.45 MSRP
