VBX 9000 Pintle

Product Number: VBS15310C


Available VBX:

Find a Dealer Product Selector



The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

The BOSS VBX9000 pintle system, constructed with the versatility to spread various types of material, maximizes productivity and minimizes what you want least - ice and snow. Utilizing up to three cubic yards of de-icing capacity, the VBX9000 is your heavy-duty solution for heavy-duty jobs. BOSS VBX spreaders are backed by quality, durability, and service BOSS has built its reputation on.

Product Features

View All Features

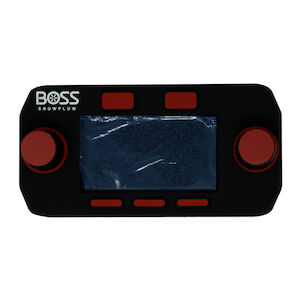

Motor Control And LCD Screen

Motor Control And LCD Screen

for ease of use, reliability and good looks.
Stainless Steel Motor

Stainless Steel Motor

for corrosion resistance, reduced maintenance and longer life.
Strong Poly Hoppers

Strong Poly Hoppers

with 1.5, 2 & 3 cubic yards of capacity.

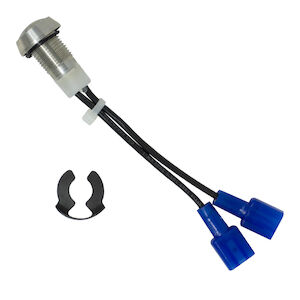

Remote Light Switch

Remote Light Switch

Easily turn spreader lights on and off from inside the vehicle cab and at the rear of the spreader.
Urethane Spinner

Urethane Spinner

for durability and maximum adjustability and spreading efficiency.

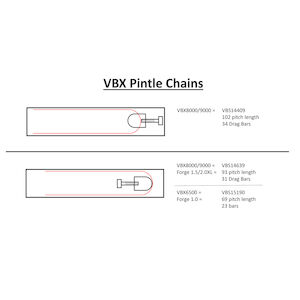

Pintle Chain Feed

Pintle Chain Feed

Pintle chain spreaders allow you to spread sand and sand/ salt mix to meet the needs of your winter conditions.

Learn More

Specifications VBX 9000 Pintle VBX 9000 Auger VBX 8000 Pintle VBX 8000 Auger VBX 6500 Pintle VBX 6500 Auger VBX 3000 Auger
Adjustable Deflector Standard Standard Standard Standard Standard Standard Standard
Capacity cubic yd 3 / cubic m 2.3 cubic yd 3 / cubic m 2.3 cubic yd 2 / cubic m 1.53 cubic yd 2 / cubic m 1.53 cubic yd 1.5 / cubic m 1.15 cubic yd 1.5 / cubic m 1.15 cubic yd .44 / cubic m .33
Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control
Display Type LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller Dual Variable Speed LED Digital Controller
Feed Mechanism Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Auger
Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 1/4 HP Feed Motor
Gearbox Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Worm 40:1
Hopper Construction 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper
Hopper Cover VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs
Hopper Height 49 in. / 124.46 cm 49 in. / 124.46 cm 38 in. / 96.52 cm 38 in. / 96.52 cm 38 in. / 96.52 cm 38 in. / 96.52 cm 28 in. / 71.12 cm
Hopper Length 107 in / 272 cm 107 in / 272 cm 96 in / 244 cm 96 in / 244 cm 78 in / 198 cm 78 in / 198 cm 33.5 in / 85 cm
Hopper Tie-Down Kit Standard Standard Standard Standard Standard Standard Standard
Hopper Width 48 in / 121.92 cm 48 in / 121.92 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 50 in / 127.00 cm
Inverted V Baffle Optional Standard Optional Standard Optional Standard Standard
LED CHSML Standard Standard Standard Standard Standard Standard N/A

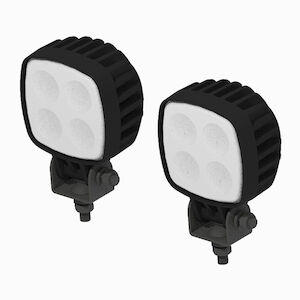

Lighting Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Single 55 watt halogen (Standard), single LED work light (optional)
Material Conveying Method 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger Shaftless Auger 4" OD (10 cm) x 4" (10 cm) Pitch
Max Feed Rate 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 0.8 cu ft (0.02 cu m) per minute
Minimum Bed Length 96 in (243.8 cm) 96 in (243.8 cm) 78 in (198 cm) 78 in (198 cm) 66 in (168 cm) 66 in (168 cm) 33.5 in (85 cm)*
Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 12 in (31 cm) Diameter Poly Spinner
Spinner Assembly Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable
Spinner Gearmotor 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner)
Spreader Overall Length 122 in / 309 cm 122 in / 309 cm 115 in / 292 cm 115 in / 292 cm 93.5 in / 237 cm 93.5 in / 237 cm 52 in / 132 cm
Spreading Width 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material
Top Screen Standard Standard Standard Standard Standard Standard Standard
Trough 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 14 ga. Stainless Steel
Vehicle Application 15,000+ GVWR 15,000+ GVWR 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 1,000 Bed Capacity
Vibrator Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Standard (Single Vibrator)
Weight 760 lbs / 345 kg 710 lbs / 322 kg 650 lbs / 295 kg 600 lbs / 272 kg 600 lbs / 272 kg 550 lbs / 249 kg 230 lbs / 104 kg

Parts

2" x 10' Ratchet Strap, VBX

Product Number: VBS14547

Where to Buy

Truck Harness Dust Cap, VBS

Product Number: VBS14266

Where to Buy

150 AMP Mega Fuse, In-Line

Product Number: MSC13177

Where to Buy

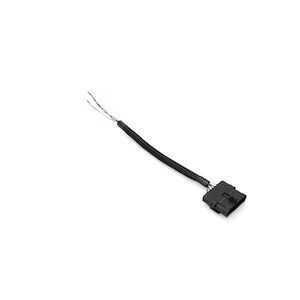

Spinner Harness Jumper

Product Number: MSC14024

Where to Buy

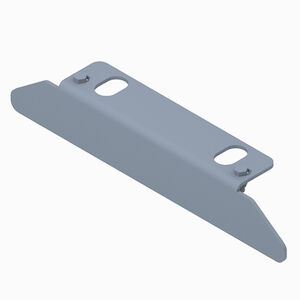

BRKT- DEFLECTOR, SPREADER

Product Number: MSC17203

Where to Buy

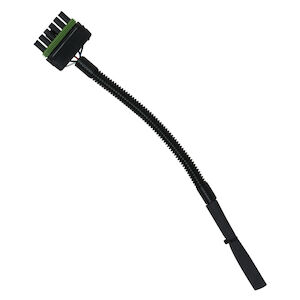

VBX Truck Side Harness

Product Number: VBS14283

Where to Buy

Adjustable Deflector, VBS

Product Number: VBS14039

Where to Buy

UTV 55W Halogen Headlight

Product Number: MSC12249

Where to Buy

Pre-Wet Capable Controller

Product Number: MSC17990

Where to Buy

Tapered Pin

Product Number: VBS14180

Where to Buy

Control Mount Upper Bracket, VBX

Product Number: VBS14461-03

Where to Buy

Control Mount Lower Bracket, VBX

Product Number: VBS14460-03

Where to Buy

14.5 Urethane Spinner, VBS

Product Number: VBS14017

Where to Buy

5/16"-18 Threaded Knob

Product Number: HDW14016

Where to Buy

Rear Light, VBX

Product Number: VBS14548

Where to Buy

Leg Bolt Plate, VBX

Product Number: VBS14517

Where to Buy

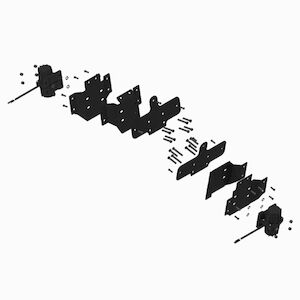

Tie-Down Hardware Kit, VBX

Product Number: VBS14552

Where to Buy

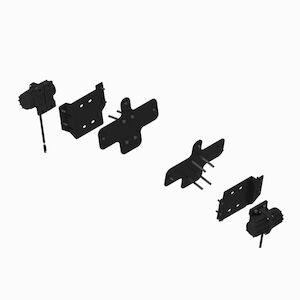

VBX Tie Down Kit

Product Number: VBS14551

Where to Buy

Lift Strap Bar, VBS

Product Number: VBS14038

Where to Buy

VBX AUGER FRONT COVER

Product Number: VBS14571

Where to Buy

Pintle Sweeper, Poly, VBX

Product Number: VBS14523

Where to Buy

1-1/4" Coupling, VBX

Product Number: VBS14538

Where to Buy

O-RING [4.50 X .063] BUTYL

Product Number: MSC17765

Where to Buy

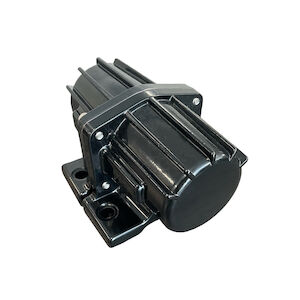

VIBRATOR,12VDC,125LB

Product Number: MSC14350

Where to Buy
