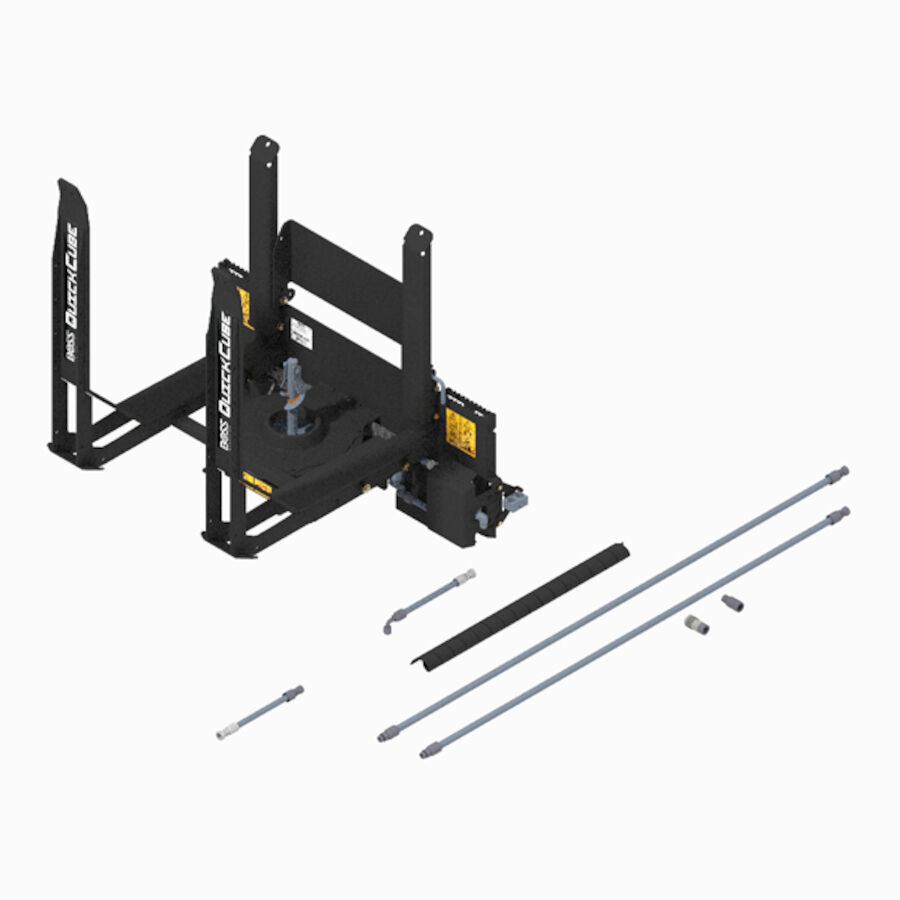

Spreader Assembly QuickCube
QUICKCUBE
QuickCube
Product Number: SKS21195
Available QUICKCUBE:
Find a Dealer
Product Selector
The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.
Product Details
Heavy-duty 14.25" diameter stainless steel spinner provides years of reliable operation and excellent spread pattern. The full stainless steel auger with heavy-duty material agitator breaks up clumps and maintains steady material flow for efficiency. The fork design allows for ease of operation in daylight or darkness. Includes hardware assembly.
| Specifications | QuickCube |
|---|---|
| Adjustable Deflector | Standard |
| Capacity | cubic yd .5 / cubic m .38 |
| Cube & Cover Construction | Gray HDPE (High-Density Polyethylene) |
| Cube Height | 38 in. / 96.52 cm |
| Cube Weight (Empty) | 100 lbs / 45 kg |
| Cube Width | 46 in / 116.84 cm |
| Feed Mechanism | Internal Auger With Material Saving Brush |
| Flow Control Block | Standard - Adjustable |
| Fork Construction | AR400 & High-Strength Steel |
| Hydraulic Coupler Type/Size | Standard -10 JIC & ORB, Parker 387, ISO 18752-DC |
| Hydraulic Hose Type/Size | -08 & -10 & ORB, Parker 387, ISO 18752-DC |
| Hydraulic Motor | 3,010 in-lb Torque max, 600 rpm max |
| Spinner | 14.25 in (36.2 cm) Diameter Stainless Steel |
| Spreader Construction | High-Strength Steel |
| Spreading Width | 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material |
Parts
Quick Cube Main Fork With Sticker Assembly
Product Number: SKS21175

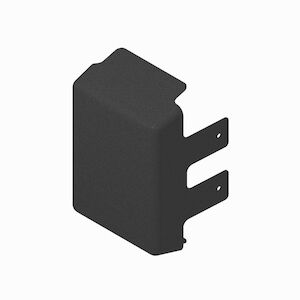

QuickCube Flow Control Cover
Product Number: SKS21140
HOSE ASM,1/2 X 8.5,-08 FJIC,-10FJIC
Product Number: HYD21191
FTG-ELBOW-ORB-JIC-10
Product Number: HYD19804
FTG- TEE- ORB-JICS -08
Product Number: HYD21194
SKS 10 ORB Flow Control
Product Number: HYD19802
VALVE,CHECK,-08 ORB
Product Number: HYD21188
FTG-TEE-ORB-JIC-10
Product Number: HYD19805
Quick Cube Motor Box Assembly
Product Number: SKS21208
Deflector Bracket Kit with Hardware, TGS
Product Number: TGS05958
SKS Hydraulic Spinner Motor
Product Number: HYD19800
FTG-STR-ORB-JIC-10
Product Number: HYD19806
TWINS CLAMPS W/PLATES 5/16 SS HDW
Product Number: HYD19819
Quck Cube Hose Mount
Product Number: SKS21183-03
Quick Cube Frame
Product Number: SKS21180-03
Leg Lock Spring Pin, TGS, 2004+
Product Number: TGS05893
.85 OD x 2.25 SS Spring
Product Number: TFR04410
Quick Cube Blocking Bracket Assembly
Product Number: SKS21192
Quick Cube Fork Top
Product Number: SKS21156-03
Quick Cube Bushing .57" ID X .81" OD X .625"
Product Number: SKS21159-03
10 QDC Coupler
Product Number: HYD19808
QDC-PLUG-10
Product Number: HYD19809

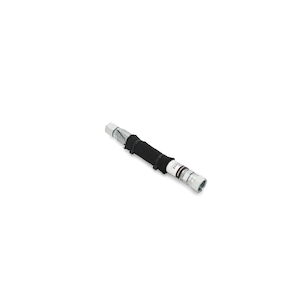

Hose Assembly, 5/8" x 72.0 with Sleeve, -10FJIC, -10
Product Number: HYD21215
Hose Assembly, 5/8" x 79.0 with Sleeve, -10FJIC, -10
Product Number: HYD21216
WRAP,PRO-TEC 93200X36
Product Number: HYD19818
Quick Cube Spinner Assembly
Product Number: SKS21146

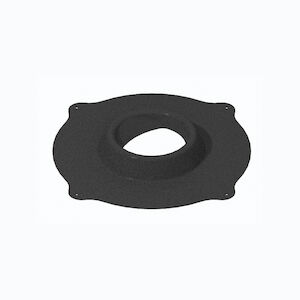

Quick Cube Material Guide Ring
Product Number: SKS21173
