Forge

Forge 2.0 Pintle

Product Number: VBS22210


Available Forge:

Find a Dealer Product Selector



The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

The BOSS FORGEĀ® 2.0 pintle chain system brings power and durability to long-bed applications. Constructed with a pintle chain to spread various types of material. The extended heavy-duty hopper makes loading simpler with a loader bucket. Complete with bolting, riveting, and welding, the FORGEĀ® stainless steel hopper gives you optimal durability and serviceability. So you can do WHATEVER IT TAKES to get the job done right.

Product Features

View All Features
Stainless Steel Hopper

Stainless Steel Hopper

14 ga stainless steel hopper built to outlast the elements.
Urethane Spinner

Urethane Spinner

14.5" diameter urethane spinner is sealed for durability and maximum spreading efficiency.
Motor Cover

Motor Cover

Motor cover protects both the drive and spinner motors from falling sand, salt and de-icing materials.
Top Screen

Top Screen

Standard top screen.
Pre-Wet Capable

Pre-Wet Capable

Option for pre-wet capability and upgraded controller.
2 Year Limited Warranty

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More
Pintle Chain Feed

Pintle Chain Feed

Pintle chain spreaders allow you to spread sand and sand/ salt mix to meet the needs of your winter conditions.

Learn More

Specifications Forge 2.0 Pintle Forge 2.0 Auger Forge 1.5 Pintle Forge 1.5 Auger Forge 1.0 Pintle Forge 1.0 Auger
Adjustable Deflector Standard Standard Standard Standard Standard Standard
Capacity cubic yd 2 / cubic m 1.53 cubic yd 2 / cubic m 1.53 cubic yd 1.5 / cubic m 1.15 cubic yd 1.5 / cubic m 1.15 cubic yd 1 / cubic m .76 cubic yd 1 / cubic m .76
Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control
Display Type LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller LED Digital Display Controller
Feed Mechanism Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger
Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor 1/2 HP Feed Motor
Gearbox Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1
Hopper Construction 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel 14 ga Stainless Steel

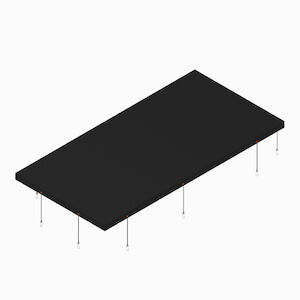

Hopper Cover Optional Optional Optional Optional Optional Optional
Hopper Height 36 in. / 91.44 cm 36 in. / 91.44 cm 33 in. / 83.82 cm 33 in. / 83.82 cm 33 in. / 83.82 cm 33 in. / 83.82 cm
Hopper Length 96 in / 244 cm 96 in / 244 cm 70 in / 177.8 cm 70 in / 177.8 cm 49.5 in / 126 cm 49.5 in / 126 cm
Hopper Tie-Down Kit Standard Standard Standard Standard Standard Standard
Hopper Width 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm 48 in / 121.92 cm

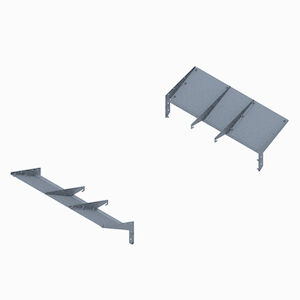

Inverted V Baffle Optional Standard Optional Standard Optional Standard
LED CHSML Standard Standard Standard Standard Standard Standard

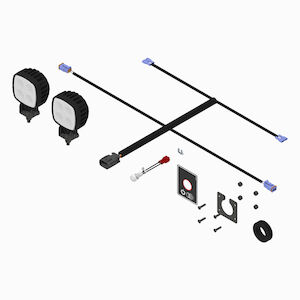

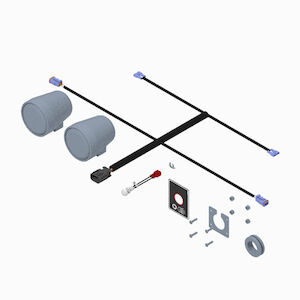

Lighting Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights Optional halogen or LED work lights
Material Conveying Method 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger
Max Feed Rate 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute
Minimum Bed Length 96 in (243.8 cm) 96 in (243.8 cm) 78 in (198 cm) 78 in (198 cm) 66 in (168 cm) 66 in (168 cm)
Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner
Spinner Assembly Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out Easily Removable/Swing Out
Spinner Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor 1/8 HP Gearmotor
Spreader Overall Length 124 in / 315 cm 124 in / 315 cm 98 in / 249 cm 98 in / 249 cm 78 in / 198 cm 78 in / 198 cm
Spreading Width 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material
Top Screen Standard Standard Standard Standard Standard Standard
Trough 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel
Vehicle Application 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 1/2 T 1/2 T
Vibrator Optional Standard (Single Vibrator) Optional Standard (Single Vibrator) Optional Standard (Single Vibrator)
Weight 825 lbs / 374.2 kg 775 lbs / 351.5 kg 750 lbs / 340 kg 700 lbs / 318 kg 625 lbs / 284 kg 575 lbs / 261 kg

Parts

Washer

Product Number: HDW14428

Where to Buy

Truck Harness Dust Cap, VBS

Product Number: VBS14266

Where to Buy

150 AMP Mega Fuse, In-Line

Product Number: MSC13177

Where to Buy

Spinner Harness Jumper

Product Number: MSC14024

Where to Buy

BRKT- DEFLECTOR, SPREADER

Product Number: MSC17203

Where to Buy

VBX Truck Side Harness

Product Number: VBS14283

Where to Buy

Adjustable Deflector, VBS

Product Number: VBS14039

Where to Buy

DECAL, SPINNER WARNING

Product Number: MSC19869

Where to Buy

Tapered Pin

Product Number: VBS14180

Where to Buy

Control Mount Upper Bracket, VBX

Product Number: VBS14461-03

Where to Buy

Control Mount Lower Bracket, VBX

Product Number: VBS14460-03

Where to Buy

14.5 Urethane Spinner, VBS

Product Number: VBS14017

Where to Buy

NUT,CAGE,1/4-20,ST/ST 18-8

Product Number: HDW17176

Where to Buy

Lock Pin Engage Decal, TGS

Product Number: TGS05896

Where to Buy

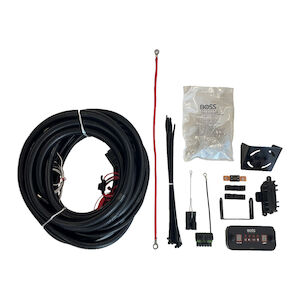

Forge Control Kit

Product Number: VBS17220

Where to Buy

SPINNER ASM,SS,FORGE

Product Number: VBS17105

Where to Buy

DXT Pinch Point Decal

Product Number: MSC18131

Where to Buy

WEATHER CAP,VIBRATOR,VBS

Product Number: MSC19526

Where to Buy

VBS Hopper Boss Logo Decal

Product Number: MSC17222

Where to Buy

DECAL,LOGO,FORGE 2.0,LB

Product Number: MSC22230

Where to Buy

FRONT COVER,PINTLE,FORGE

Product Number: VBS17109

Where to Buy

Rear Light, VBX

Product Number: VBS14548

Where to Buy

EDGE TRIM,SEALING,CENTER

Product Number: MSC17184

Where to Buy

VBX Tie Down Kit

Product Number: VBS14551

Where to Buy

2" x 10' Ratchet Strap, VBX

Product Number: VBS14547

Where to Buy

Tie-Down Hardware Kit, VBX

Product Number: VBS14552

Where to Buy

BEARING COVER,PINTLE,FORGE

Product Number: MSC17239

Where to Buy

Pintle Sweeper, Poly, VBX

Product Number: VBS14523

Where to Buy

1-1/4" Coupling, VBX

Product Number: VBS14538

Where to Buy

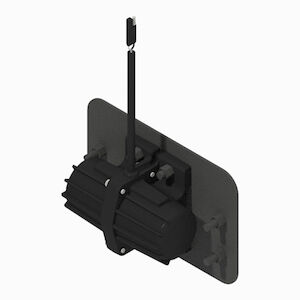

VIBRATOR,12VDC,125LB

Product Number: MSC14350

Where to Buy
