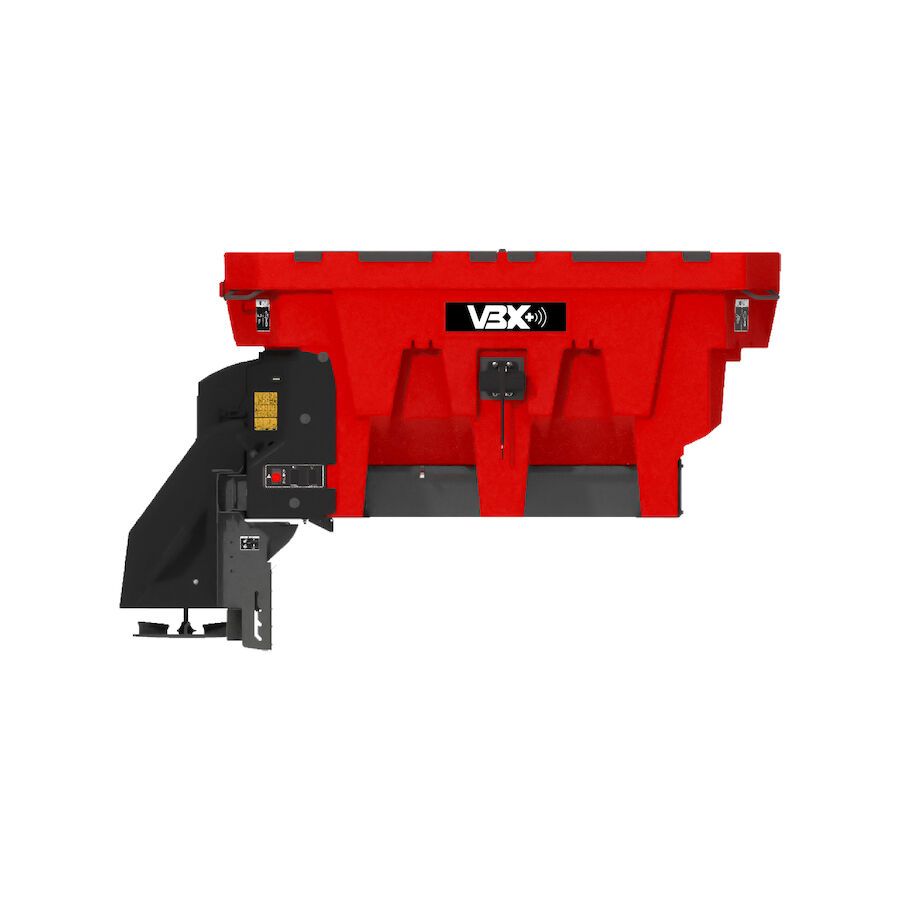

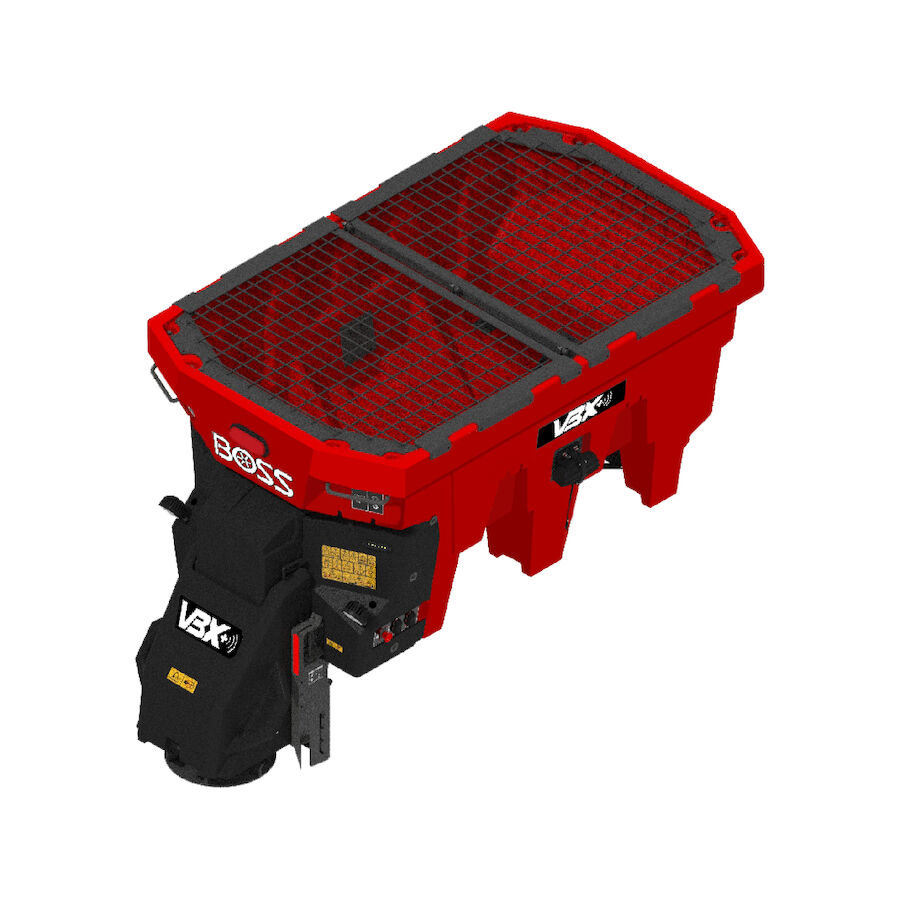

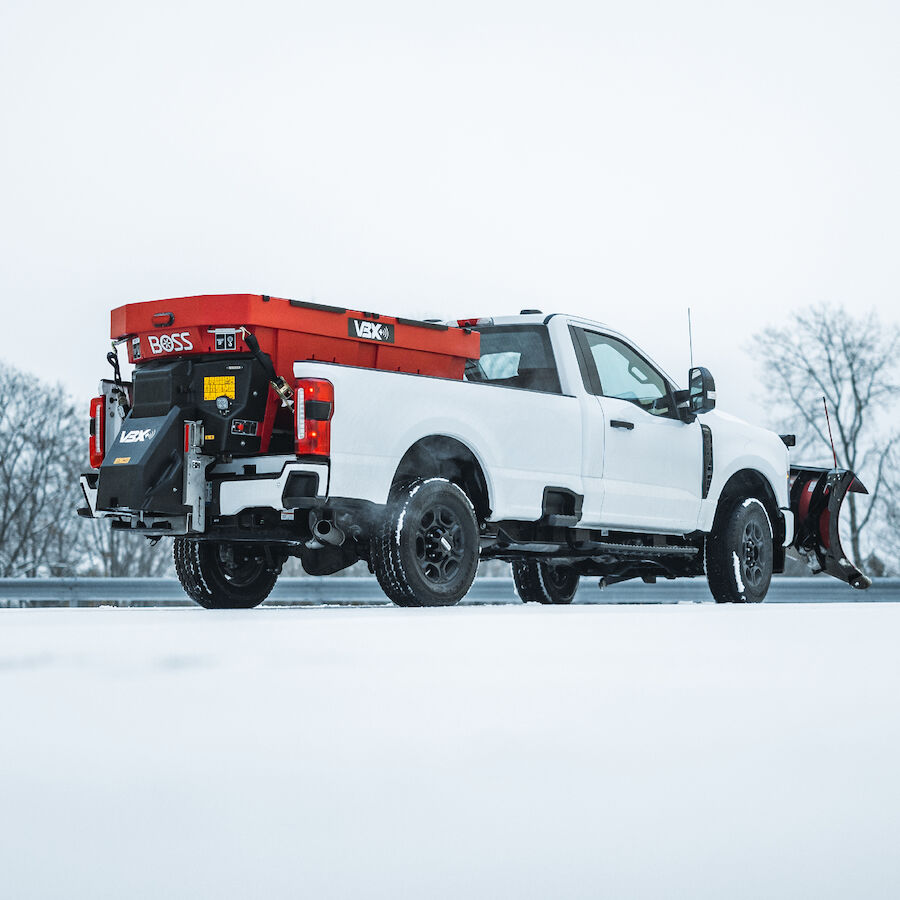

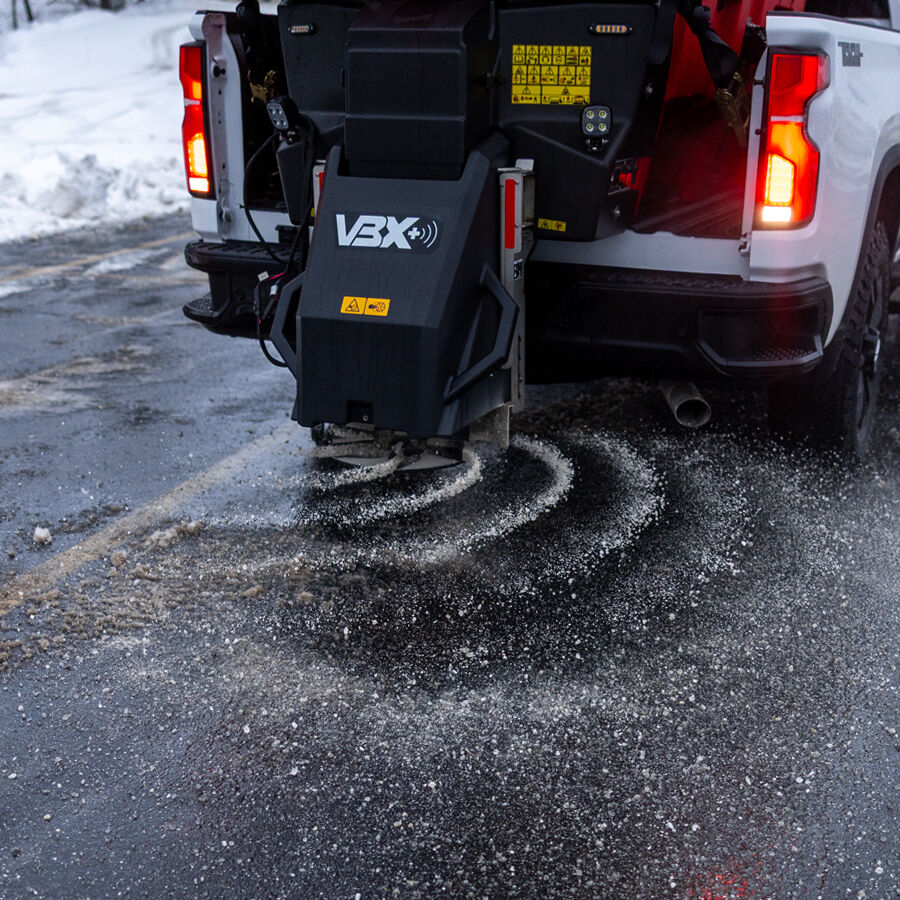

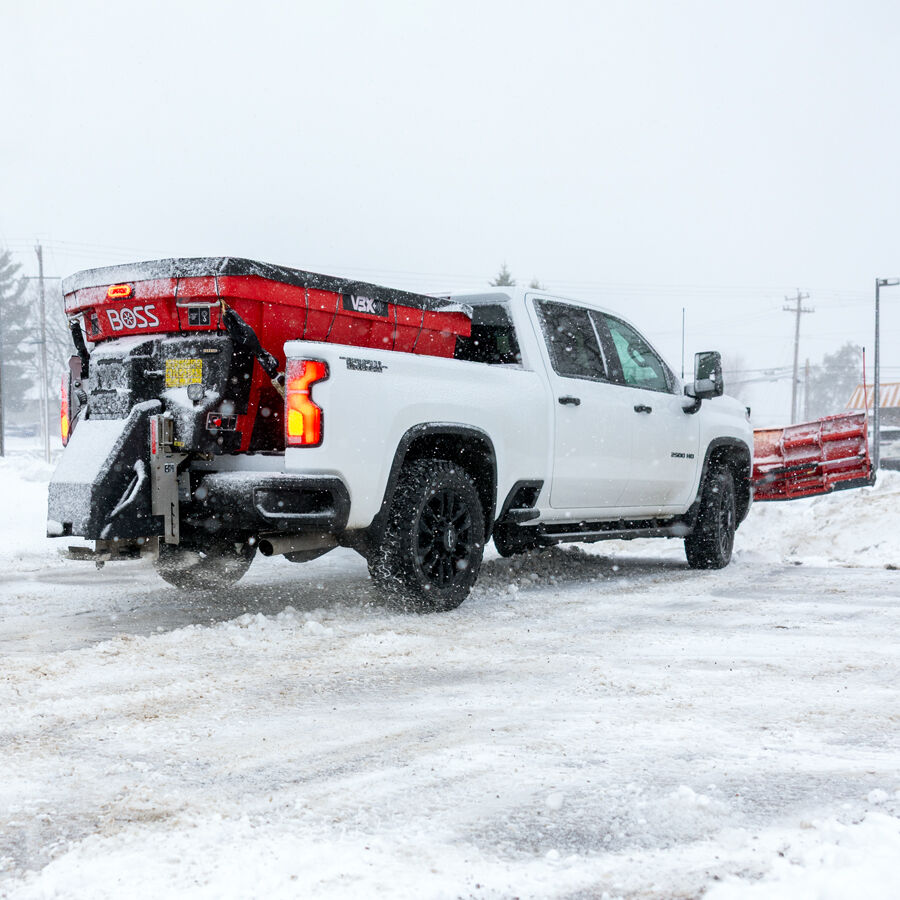

VBX+ 1.5 Yard Auger

Product Number: VBS26150

  No Reviews (BOSS Trustpilot Reviews)


Available VBX+:

Product Details

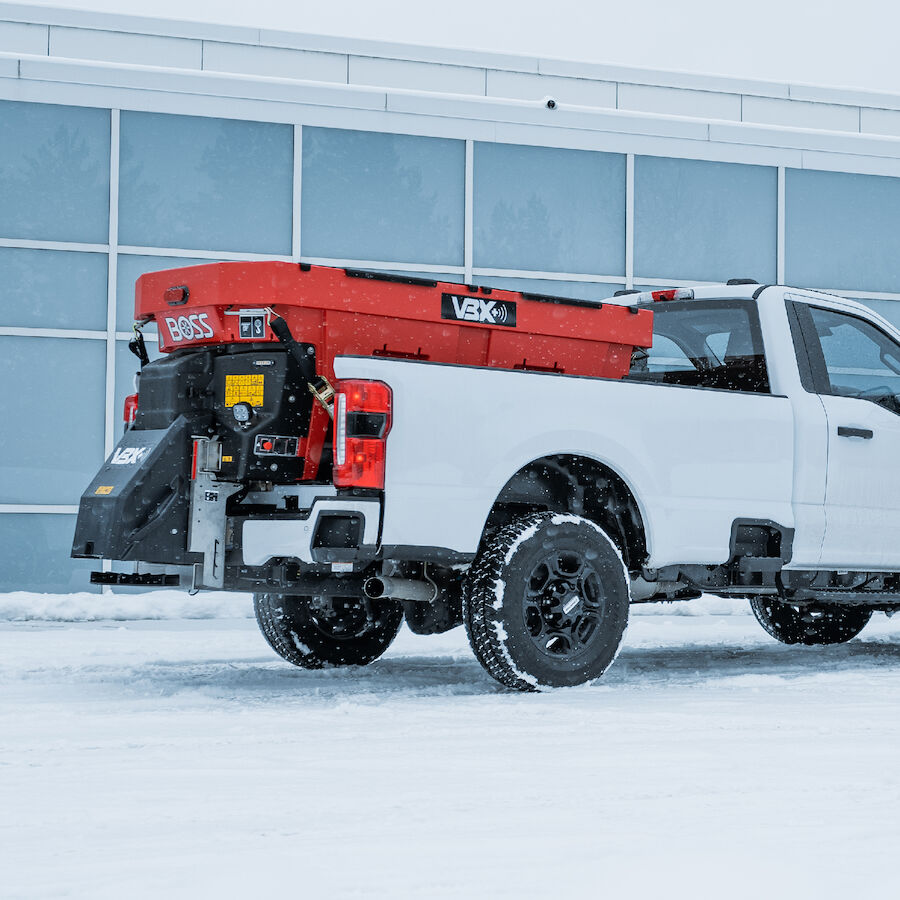

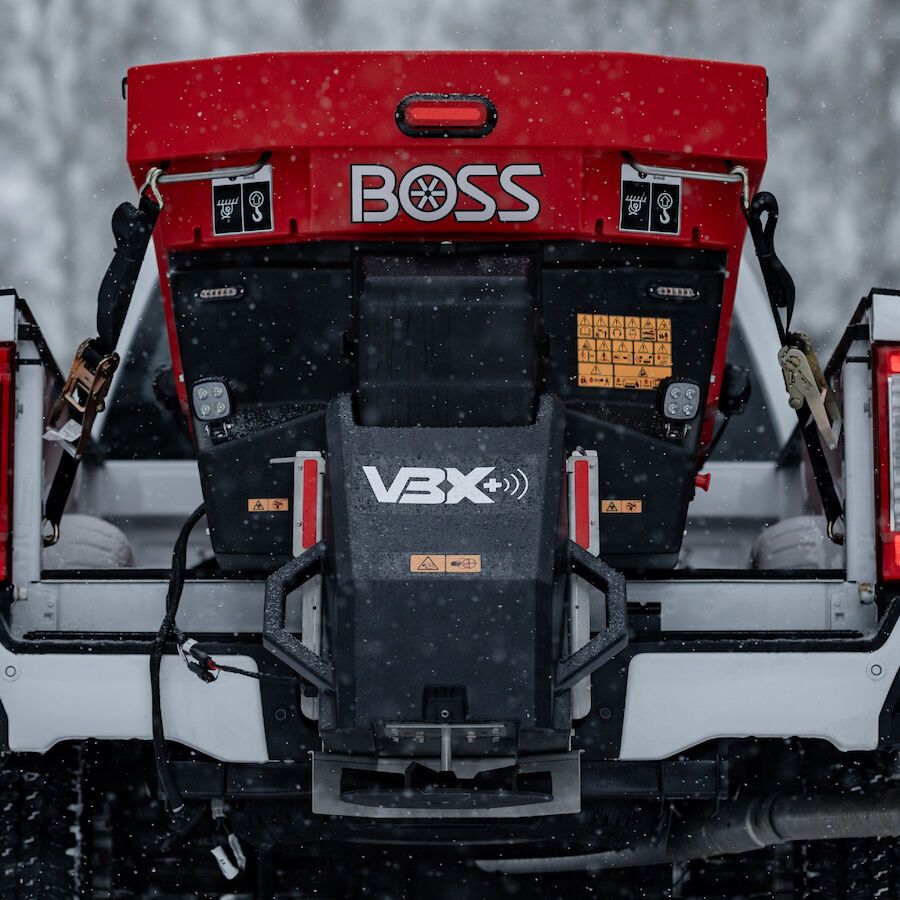

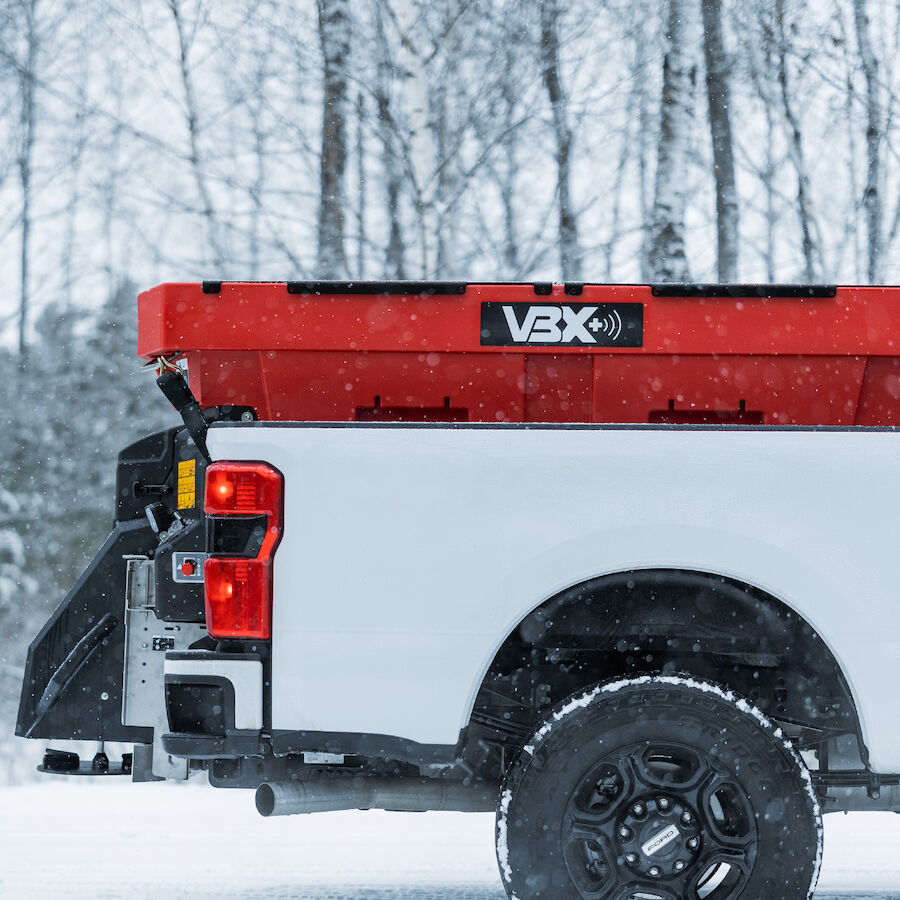

Introducing the VBX+ - Where Innovation Meets Performance. Get ready to revolutionize your snow and ice management game with the VBX+, the dawn of spreader technology from BOSS. Designed for the modern contractor, the VBX+ is packed with smart features that put you in control like never before, allowing precise material distribution and seamless job site tracking. The VBX+ 1.5yd auger is equipped with a deicing capacity of up to 1.5 cubic yards, specifically designed for your 3/4-1 ton truck. It is constructed to effectively break through frozen chunks of salt and sand. Say goodbye to downtime with easy-to-maintain components and unrivaled power and performance. With sleek LED lighting, advanced safety features, and intuitive design enhancements, the VBX+ will do Whatever It Takes to Keep ‘Em Open when winter weather strikes. Elevate your operations, embrace the future, and experience the VBX+.
  • VBX+ Overview - Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors.
  • SPREADER MATERIAL GUIDE -Learn more about the types of spreader material for your equipment.

Product Features

View All Features

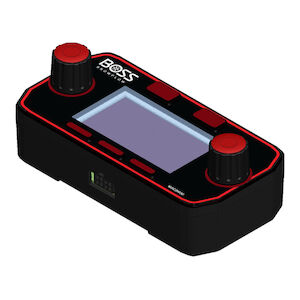

Standard Rate Control

Standard Rate Control

Set spread width and flow rate for precise material distribution, enabling operators to monitor and adjust application levels.
Job Tracking

Job Tracking

Track material usage on every job site directly from the controller for customer billing, proof of service, and material supply planning.
Future-Ready

Future-Ready

Compatible for future BOSS Smart Connected material management solutions and products
Simplified Material Calibration Adjustment

Simplified Material Calibration Adjustment

Enables operator precision in material flow control

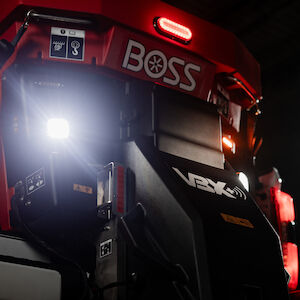

Controller Operated LED Lighting

Controller Operated LED Lighting

Upgraded LED brake lights, work lights, and selectable patterned beacon lights ensure operators are easily seen.

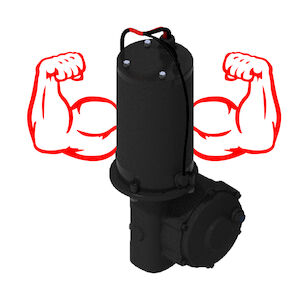

Motor Performance

Motor Performance

Upgraded feeder system efficiency and increased spinner power sets new standards beyond the traditional VBX Series.

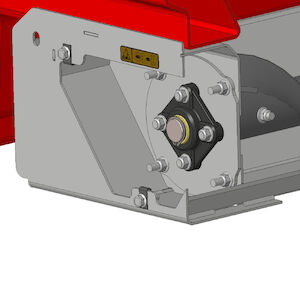

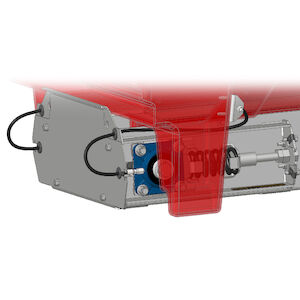

Remote Grease Zerks

Remote Grease Zerks

Remote grease zerks for enhanced maintenance and serviceability

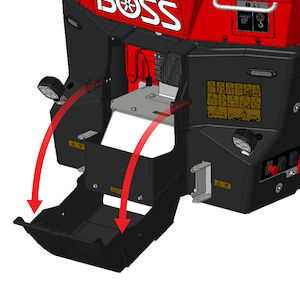

Easy Access Hatch

Easy Access Hatch

Facilitate easier access to the motor, enhancing overall serviceability.
Urethane Spinner

Urethane Spinner

for durability and maximum adjustability and spreading efficiency.

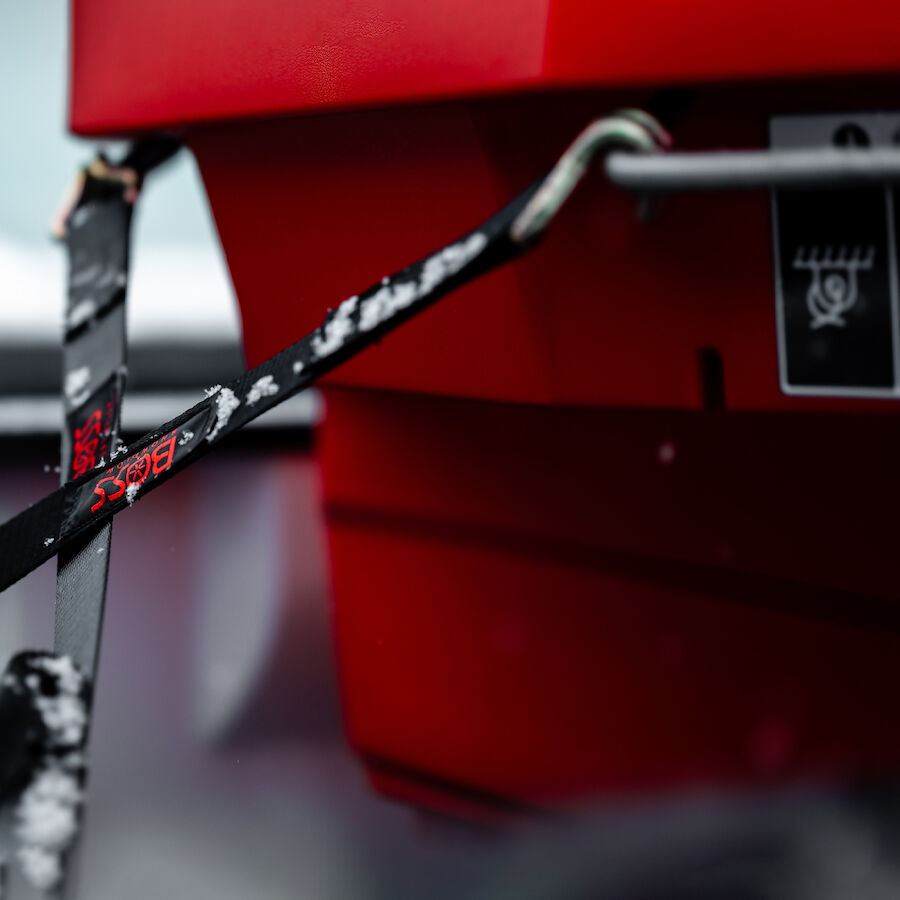

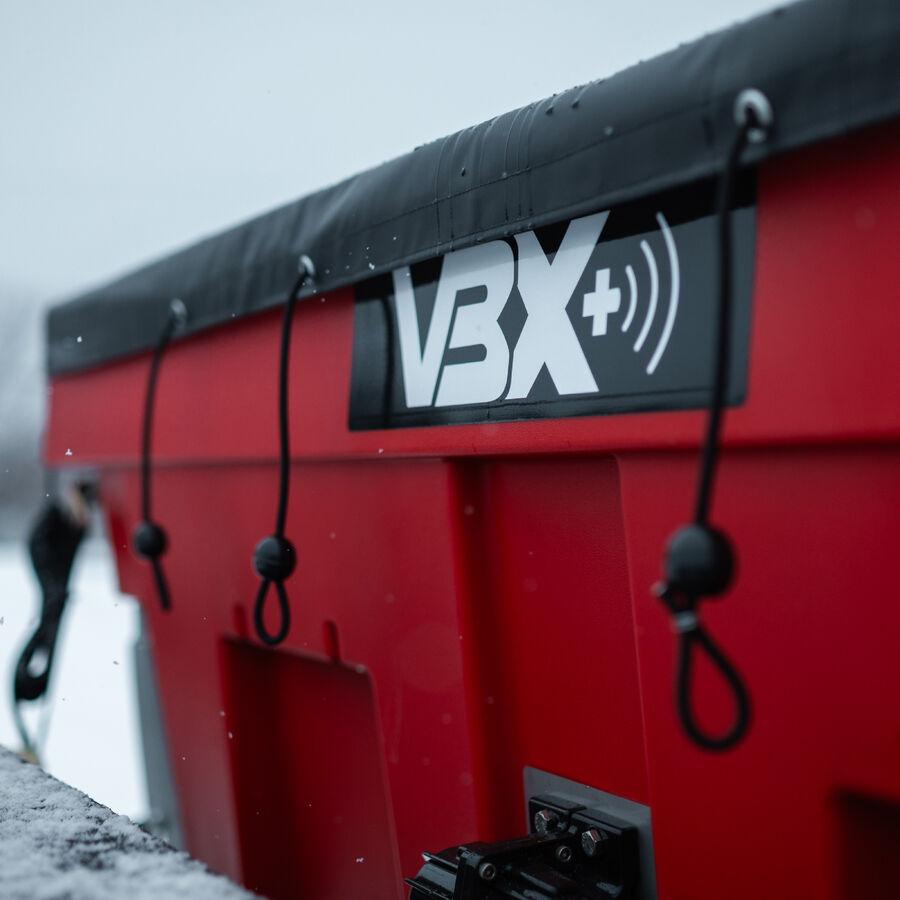

Standard Tarp System

Standard Tarp System

VCP tarp with bungee tie-downs comes standard on all VBX spreaders to protect spreading material from the elements.

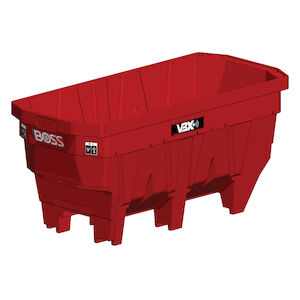

Reinforced Poly Hopper

Reinforced Poly Hopper

Reinforced poly hoppers offer capacities of 1.5, 2, and 3 cubic yards, designed to elevate efficiency and productivity to meet your needs.
Advanced Auger System

Advanced Auger System

Auger Poly Bearing eliminates the need for greasing, reducing downtime and improving ease of use.
VBX+ Overview

VBX+ Overview

Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors.

Learn More
SPREADER MATERIAL GUIDE

SPREADER MATERIAL GUIDE

Selecting deicing material can be complex and varies widely. Explore the different types of spreader materials suitable for your equipment.

Learn More

Specifications VBX+ 1.5 Yard Auger VBX+ 1.5 Yard Pintle VBX+ 2 Yard Auger VBX+ 2 Yard Pintle VBX+ 3 Yard Auger VBX+ 3 Yard Pintle
Capacity cubic yd 1.5 / cubic m 1.15 cubic yd 1.5 / cubic m 1.15 cubic yd 2 / cubic m 1.53 cubic yd 2 / cubic m 1.53 cubic yd 3 / cubic m 2.3 cubic yd 3 / cubic m 2.3
Chute Construction Polyethylene with Stainless Steel Frame Polyethylene with Stainless Steel Frame Polyethylene with Stainless Steel Frame Polyethylene with Stainless Steel Frame Polyethylene with Stainless Steel Frame Polyethylene with Stainless Steel Frame
Connectivity Smart Compatible Smart Compatible Smart Compatible Smart Compatible Smart Compatible Smart Compatible
Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control
Deflector Standard Standard Standard Standard Standard Standard
Display Type LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller
Feed Mechanism Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain
Feed Motor 3/4 HP Feed Motor 3/4 HP Feed Motor 3/4 HP Feed Motor 3/4 HP Feed Motor 3/4 HP Feed Motor 3/4 HP Feed Motor
Gearbox Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1
Grease Hoses Standard Standard Standard Standard Standard Standard
Hopper Construction 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper
Hopper Cover VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs
Hopper Height 38 in / 96.52 cm 38 in / 96.52 cm 38 in / 96.52 cm 38 in / 96.52 cm 49 in / 124.46 cm 49 in / 124.46 cm
Hopper Length 78 in / 198 cm 78 in / 198 cm 96 in / 244 cm 96 in / 244 cm 108 in / 274 cm 108 in / 274 cm
Hopper Width 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48 in / 121.92 cm 48 in / 121.92 cm
Inverted V-Baffle Standard Optional Standard Optional Standard Optional
LED CHSML Standard Standard Standard Standard Standard Standard
LED Strobe Lights Standard (Two) Standard (Two) Standard (Two) Standard (Two) Standard (Two) Standard (Two)
LED Work Lights Standard (Two) Standard (Two) Standard (Two) Standard (Two) Standard (Two) Standard (Two)
Material Conveying Method 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain
Max Feed Rate 150 lbs (70 kg) per minute 240 lbs (110 kg) per minute 150 lbs (70 kg) per minute 240 lbs (110 kg) per minute 150 lbs (70 kg) per minute 240 lbs (110 kg) per minute
Minimum Bed Length 66 in (168 cm) 66 in (168 cm) 78 in (198 cm) 78 in (198 cm) 96 in (243.8 cm) 96 in (243.8 cm)
Spinner 15 in (38.1 cm) Diameter Poly Spinner 15 in (38.1 cm) Diameter Poly Spinner 15 in (38.1 cm) Diameter Poly Spinner 15 in (38.1 cm) Diameter Poly Spinner 15 in (38.1 cm) Diameter Poly Spinner 15 in (38.1 cm) Diameter Poly Spinner
Spinner Assembly Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable
Spinner Gearmotor 1/2 HP Spinner Gearmotor (Located above spinner) 1/2 HP Spinner Gearmotor (Located above spinner) 1/2 HP Spinner Gearmotor (Located above spinner) 1/2 HP Spinner Gearmotor (Located above spinner) 1/2 HP Spinner Gearmotor (Located above spinner) 1/2 HP Spinner Gearmotor (Located above spinner)
Spreader Overall Length 93.5 in / 237 cm 93.5 in / 237 cm 115 in / 292 cm 115 in / 292 cm 122 in / 309 cm 122 in / 309 cm
Spreader Switches Two Dual Function Rocker Switches, E-Stop Two Dual Function Rocker Switches, E-Stop Two Dual Function Rocker Switches, E-Stop Two Dual Function Rocker Switches, E-Stop Two Dual Function Rocker Switches, E-Stop Two Dual Function Rocker Switches, E-Stop
Spreading Width 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material
Tie-Down Kit Standard Standard Standard Standard Standard Standard

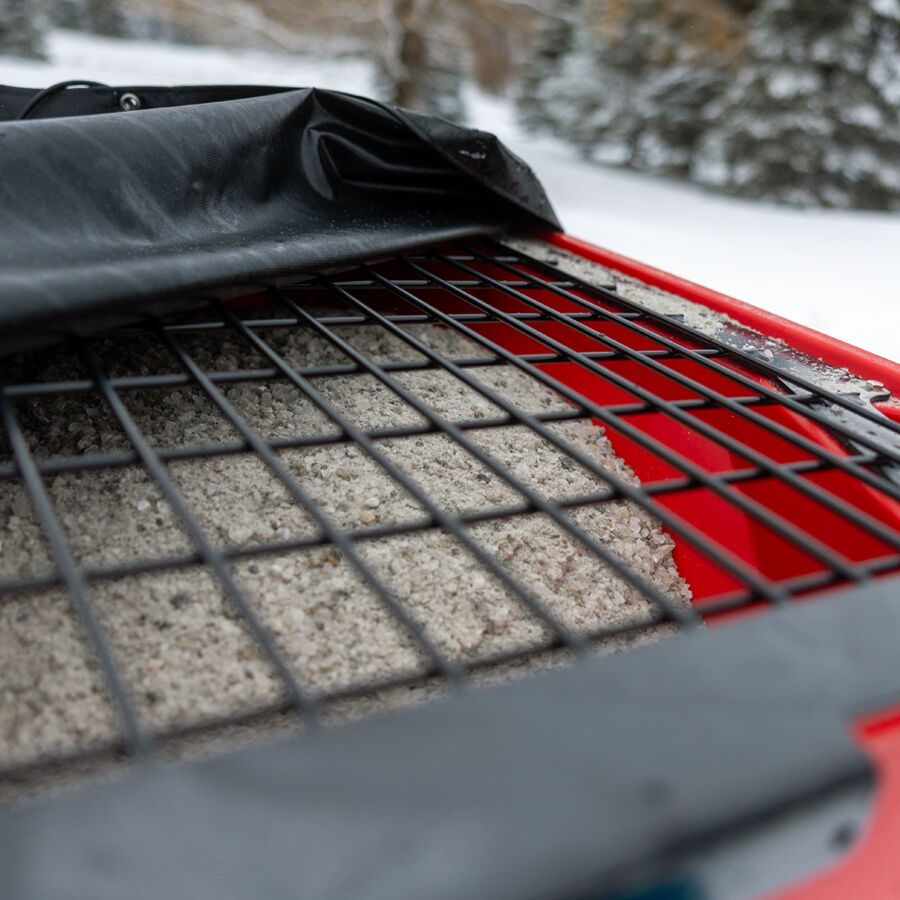

Top Screen Standard Standard Standard Standard Standard Standard
Trough 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel
Vehicle Application 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 15,000+ GVWR 15,000+ GVWR
Vehicle to Spreader Connector Custom Sealed and Overmolded Power & Controls Connector Custom Sealed and Overmolded Power & Controls Connector Custom Sealed and Overmolded Power & Controls Connector Custom Sealed and Overmolded Power & Controls Connector Custom Sealed and Overmolded Power & Controls Connector Custom Sealed and Overmolded Power & Controls Connector
Vibrator Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Optional
Weight 640 lbs / 290 kg 680 lbs / 308 kg 690 lbs / 313 kg 730 lbs / 331 kg 810 lbs / 367 kg 840 lbs / 381 kg

Accessories

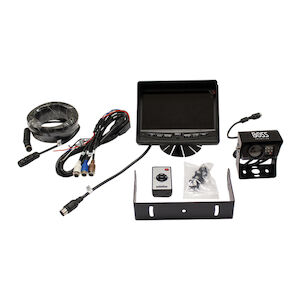

Back Up Camera

Product Number: MSC21970

$567.00 MSRP

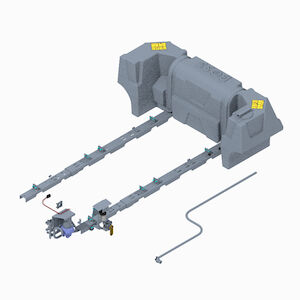

Pre Wet Kit

Product Number: MSC20100

Where to Buy

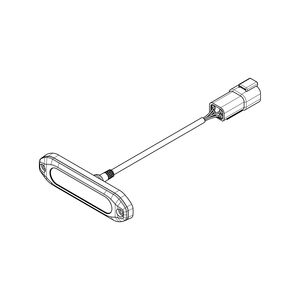

License Plate Light Kit VBX & FORGE

Product Number: MSC22900

$168.00 MSRP

Parts

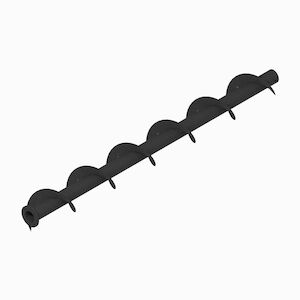

VBX 6500 AUGER 6 OD X 9 PITCH X 55 OAL

Product Number: VBS15120-03

$458.35 MSRP

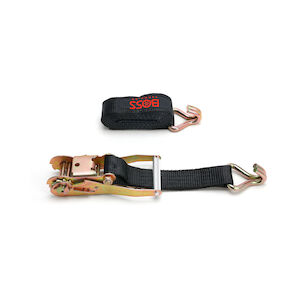

2" x 10' Ratchet Strap, VBX

Product Number: VBS14547

$49.62 MSRP

HARNESS-WIRE, SPINNER

Product Number: 122-2474

$84.99 MSRP

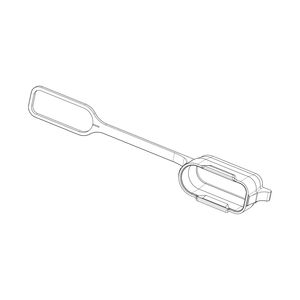

CAP-MOLDED, MALE [BOSS]

Product Number: 32180-484

$8.75 MSRP

CAP-MOLDED, FEMALE [BOSS]

Product Number: 32180-483

Where to Buy

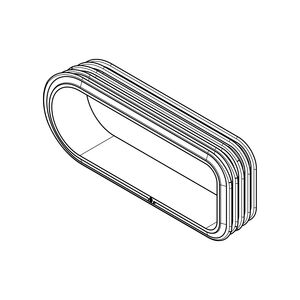

SEAL-MOLDED [BOSS]

Product Number: 32180-485

$1.99 MSRP

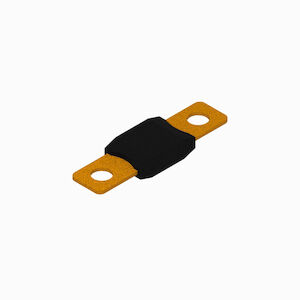

150 AMP Mega Fuse, In-Line

Product Number: MSC13177

$15.12 MSRP

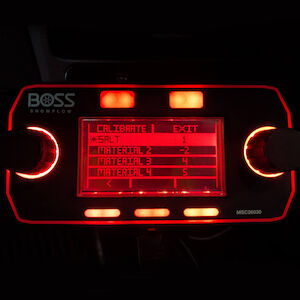

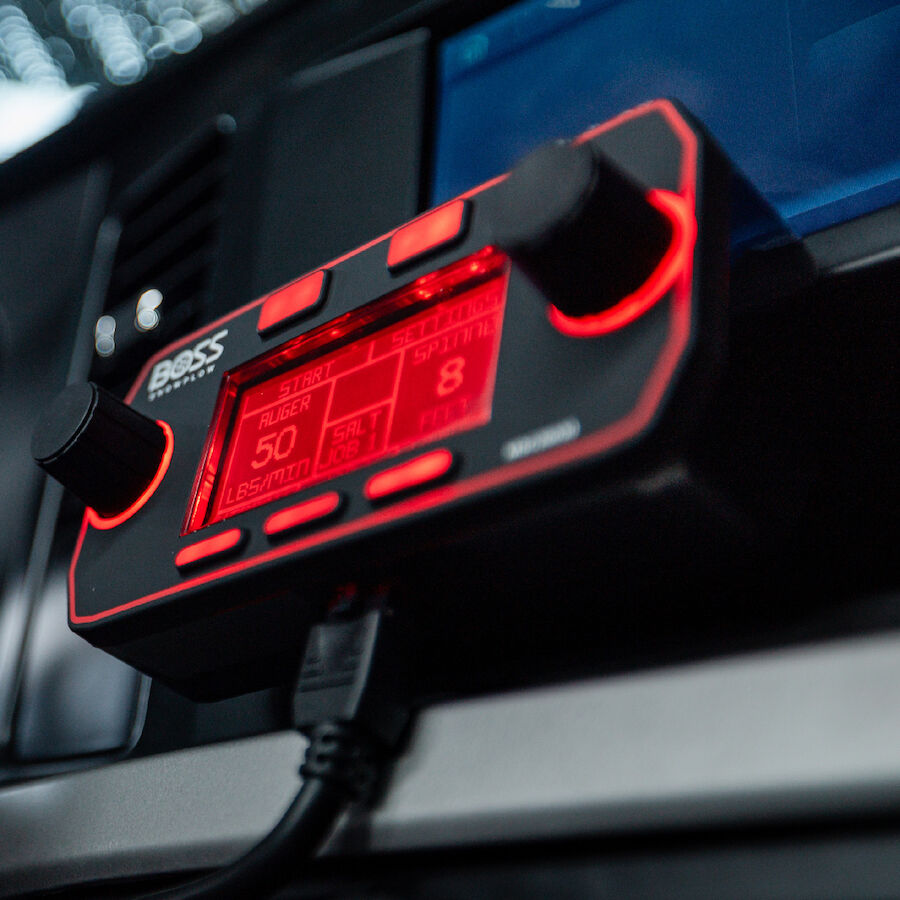

LCD In-Cab Display / Controller VBX+

Product Number: MSC26030

$821.37 MSRP

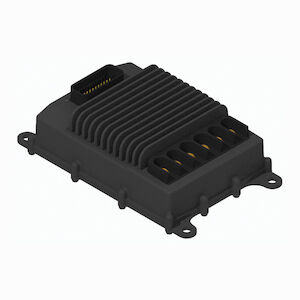

Spreader Motor Control Module

Product Number: MSC26010

$639.99 MSRP
Where to Buy

STROBE LIGHT,LED,12VDC,SAE,AMBER

Product Number: MSC26135

$79.99 MSRP

Square LED Work Light 12 V

Product Number: MSC17650

$71.52 MSRP

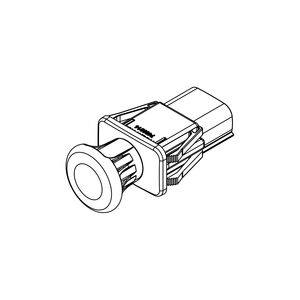

SWITCH-E-STOP [SEALED]

Product Number: MSC22540

$34.47 MSRP

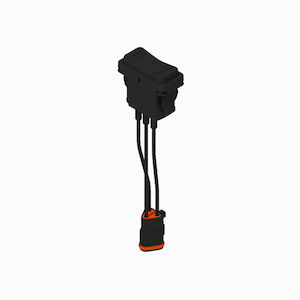

2 Way Momentary Rocker Switch

Product Number: MSC22596

$59.99 MSRP

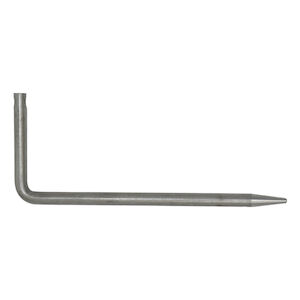

Tapered Pin
