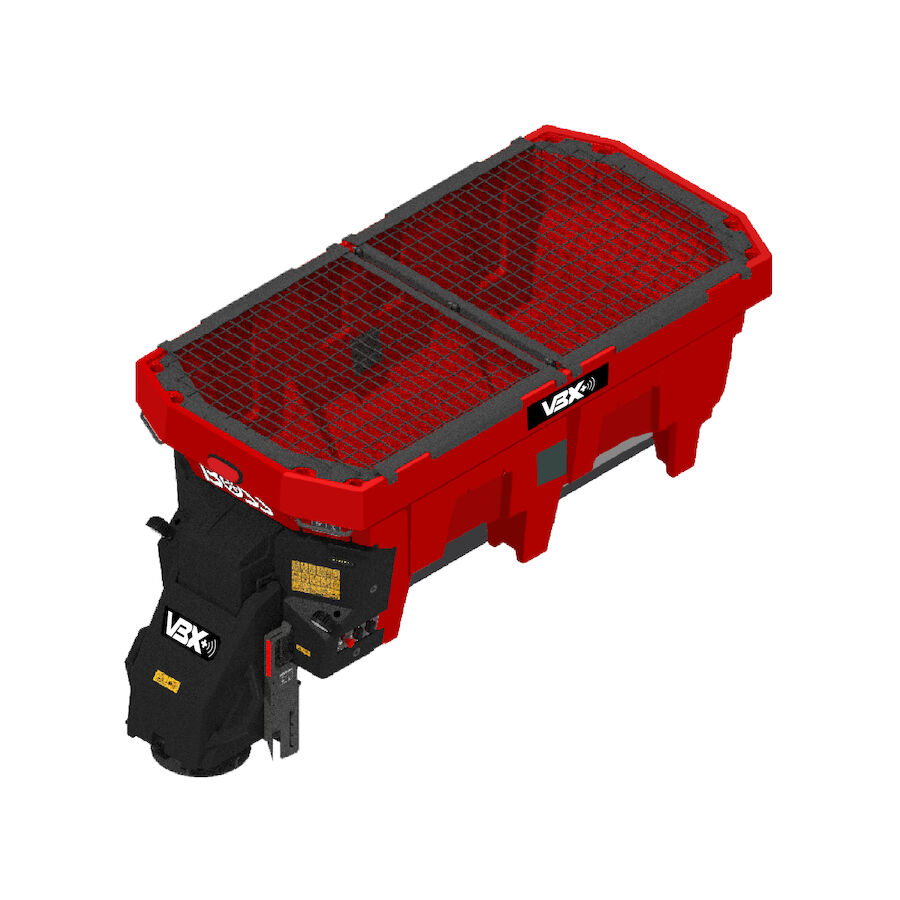

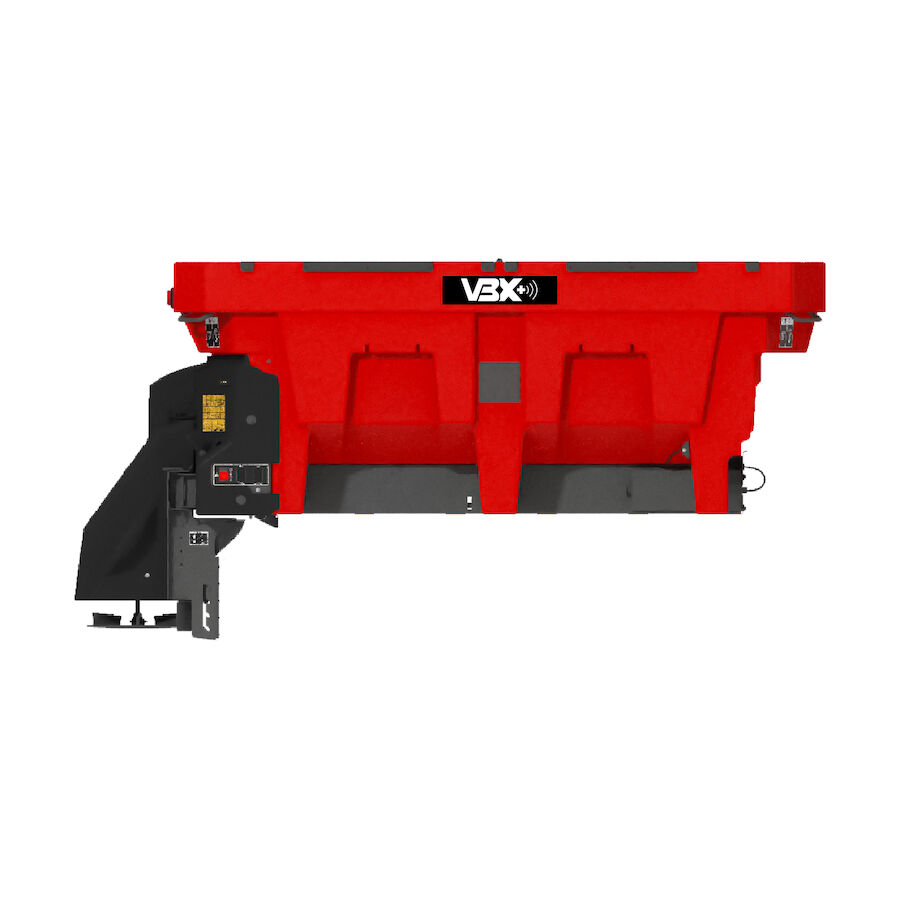

VBX+ 2 Yard Pintle

New

VBX+

VBX+ 2 Yard Pintle

Product Number: VBS26210

No Reviews (BOSS Trustpilot Reviews)

Available VBX+:

Where to Buy Financing Offers

Product Details

Introducing the VBX+ - Where Innovation Meets Performance. Get ready to revolutionize your snow and ice management game with the VBX+, the dawn of spreader technology from BOSS. Designed for the modern contractor, the VBX+ is packed with smart features that put you in control like never before, allowing precise material distribution and seamless job site tracking. The VBX+ 2yd Pintle offers up to two cubic yards of de-icing capacity, providing greater versatility than auger applications for your 3/4-1 ton trucks. Say goodbye to downtime with easy-to-maintain components and unrivaled power and performance. With sleek LED lighting, advanced safety features, and intuitive design enhancements, the VBX+ will do Whatever It Takes to Keep ‘Em Open when winter weather strikes. Elevate your operations, embrace the future, and experience the VBX+.

VBX+ Overview - Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors.
SPREADER MATERIAL GUIDE -Learn more about the types of spreader material for your equipment.

Product Features

View All Features

Easy Access Hatch

Facilitate easier access to the motor, enhancing overall serviceability.

Urethane Spinner

for durability and maximum adjustability and spreading efficiency.

Standard Tarp System

VCP tarp with bungee tie-downs comes standard on all VBX spreaders to protect spreading material from the elements.

Reinforced Poly Hopper

Reinforced poly hoppers offer capacities of 1.5, 2, and 3 cubic yards, designed to elevate efficiency and productivity to meet your needs.

Standard Rate Control

Set spread width and flow rate for precise material distribution, enabling operators to monitor and adjust application levels.

Job Tracking

Track material usage on every job site directly from the controller for customer billing, proof of service, and material supply planning.

Future-Ready

Compatible for future BOSS Smart Connected material management solutions and products

Simplified Material Calibration Adjustment

Enables operator precision in material flow control

Controller Operated LED Lighting

Upgraded LED brake lights, work lights, and selectable patterned beacon lights ensure operators are easily seen.

Motor Performance

Upgraded feeder system efficiency and increased spinner power sets new standards beyond the traditional VBX Series.

Remote Grease Zerks

Remote grease zerks for enhanced maintenance and serviceability

Enhanced Pintle Chain System

Provides extended chain life and reduced adjustment frequency with our spring-loaded chain tensioners, offering ease of use and maintenance while accommodating various spreading materials to meet your needs.

VBX+ Overview

Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors.

Learn More

SPREADER MATERIAL GUIDE

Selecting deicing material can be complex and varies widely. Explore the different types of spreader materials suitable for your equipment.

Learn More

Specifications	VBX+ 1.5 Yard Auger	VBX+ 1.5 Yard Pintle	VBX+ 2 Yard Auger	VBX+ 2 Yard Pintle	VBX+ 3 Yard Auger	VBX+ 3 Yard Pintle
Capacity	cubic yd 1.5 / cubic m 1.15	cubic yd 1.5 / cubic m 1.15	cubic yd 2 / cubic m 1.53	cubic yd 2 / cubic m 1.53	cubic yd 3 / cubic m 2.3	cubic yd 3 / cubic m 2.3
Chute Construction	Polyethylene with Stainless Steel Frame	Polyethylene with Stainless Steel Frame	Polyethylene with Stainless Steel Frame	Polyethylene with Stainless Steel Frame	Polyethylene with Stainless Steel Frame	Polyethylene with Stainless Steel Frame
Connectivity	Smart Compatible	Smart Compatible	Smart Compatible	Smart Compatible	Smart Compatible	Smart Compatible
Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control
Deflector	Standard	Standard	Standard	Standard	Standard	Standard
Display Type	LCD Display Controller	LCD Display Controller	LCD Display Controller	LCD Display Controller	LCD Display Controller	LCD Display Controller
Feed Mechanism	Auger	Pintle/Conveyor Chain	Auger	Pintle/Conveyor Chain	Auger	Pintle/Conveyor Chain
Feed Motor	3/4 HP Feed Motor	3/4 HP Feed Motor	3/4 HP Feed Motor	3/4 HP Feed Motor	3/4 HP Feed Motor	3/4 HP Feed Motor
Gearbox	Planetary Worm 91:1	Planetary Worm 137:1	Planetary Worm 91:1	Planetary Worm 137:1	Planetary Worm 91:1	Planetary Worm 137:1
Grease Hoses	Standard	Standard	Standard	Standard	Standard	Standard
Hopper Construction	3/16" (0.5 cm) Double Wall Polyethylene Hopper	3/16" (0.5 cm) Double Wall Polyethylene Hopper	3/16" (0.5 cm) Double Wall Polyethylene Hopper	3/16" (0.5 cm) Double Wall Polyethylene Hopper	3/16" (0.5 cm) Double Wall Polyethylene Hopper	3/16" (0.5 cm) Double Wall Polyethylene Hopper
Hopper Cover	VCP Tarp w/ integral tie-downs	VCP Tarp w/ integral tie-downs	VCP Tarp w/ integral tie-downs	VCP Tarp w/ integral tie-downs	VCP Tarp w/ integral tie-downs	VCP Tarp w/ integral tie-downs
Hopper Height	38 in / 96.52 cm	38 in / 96.52 cm	38 in / 96.52 cm	38 in / 96.52 cm	49 in / 124.46 cm	49 in / 124.46 cm
Hopper Length	78 in / 198 cm	78 in / 198 cm	96 in / 244 cm	96 in / 244 cm	108 in / 274 cm	108 in / 274 cm
Hopper Width	48.25 in / 122.56 cm	48.25 in / 122.56 cm	48.25 in / 122.56 cm	48.25 in / 122.56 cm	48 in / 121.92 cm	48 in / 121.92 cm
Inverted V-Baffle	Standard	Optional	Standard	Optional	Standard	Optional
LED CHSML	Standard	Standard	Standard	Standard	Standard	Standard
LED Strobe Lights	Standard (Two)	Standard (Two)	Standard (Two)	Standard (Two)	Standard (Two)	Standard (Two)
LED Work Lights	Standard (Two)	Standard (Two)	Standard (Two)	Standard (Two)	Standard (Two)	Standard (Two)
Material Conveying Method	6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger	14" (36 cm) Wide Pintle Chain	6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger	14" (36 cm) Wide Pintle Chain	6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger	14" (36 cm) Wide Pintle Chain
Max Feed Rate	150 lbs (70 kg) per minute	240 lbs (110 kg) per minute	150 lbs (70 kg) per minute	240 lbs (110 kg) per minute	150 lbs (70 kg) per minute	240 lbs (110 kg) per minute
Minimum Bed Length	66 in (168 cm)	66 in (168 cm)	78 in (198 cm)	78 in (198 cm)	96 in (243.8 cm)	96 in (243.8 cm)
Spinner	15 in (38.1 cm) Diameter Poly Spinner	15 in (38.1 cm) Diameter Poly Spinner	15 in (38.1 cm) Diameter Poly Spinner	15 in (38.1 cm) Diameter Poly Spinner	15 in (38.1 cm) Diameter Poly Spinner	15 in (38.1 cm) Diameter Poly Spinner
Spinner Assembly	Easily Removable/Swing Out and Height Adjustable	Easily Removable/Swing Out and Height Adjustable	Easily Removable/Swing Out and Height Adjustable	Easily Removable/Swing Out and Height Adjustable	Easily Removable/Swing Out and Height Adjustable	Easily Removable/Swing Out and Height Adjustable
Spinner Gearmotor	1/2 HP Spinner Gearmotor (Located above spinner)	1/2 HP Spinner Gearmotor (Located above spinner)	1/2 HP Spinner Gearmotor (Located above spinner)	1/2 HP Spinner Gearmotor (Located above spinner)	1/2 HP Spinner Gearmotor (Located above spinner)	1/2 HP Spinner Gearmotor (Located above spinner)
Spreader Overall Length	93.5 in / 237 cm	93.5 in / 237 cm	115 in / 292 cm	115 in / 292 cm	122 in / 309 cm	122 in / 309 cm
Spreader Switches	Two Dual Function Rocker Switches, E-Stop	Two Dual Function Rocker Switches, E-Stop	Two Dual Function Rocker Switches, E-Stop	Two Dual Function Rocker Switches, E-Stop	Two Dual Function Rocker Switches, E-Stop	Two Dual Function Rocker Switches, E-Stop
Spreading Width	8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material	8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material	8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material	8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material	8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material	8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material
Tie-Down Kit	Standard	Standard	Standard	Standard	Standard	Standard
Top Screen	Standard	Standard	Standard	Standard	Standard	Standard
Trough	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel
Vehicle Application	3/4 T & 1 T	3/4 T & 1 T	3/4 T & 1 T	3/4 T & 1 T	15,000+ GVWR	15,000+ GVWR
Vehicle to Spreader Connector	Custom Sealed and Overmolded Power & Controls Connector	Custom Sealed and Overmolded Power & Controls Connector	Custom Sealed and Overmolded Power & Controls Connector	Custom Sealed and Overmolded Power & Controls Connector	Custom Sealed and Overmolded Power & Controls Connector	Custom Sealed and Overmolded Power & Controls Connector
Vibrator	Standard (Dual Vibrator)	Optional	Standard (Dual Vibrator)	Optional	Standard (Dual Vibrator)	Optional
Weight	640 lbs / 290 kg	680 lbs / 308 kg	690 lbs / 313 kg	730 lbs / 331 kg	810 lbs / 367 kg	840 lbs / 381 kg
