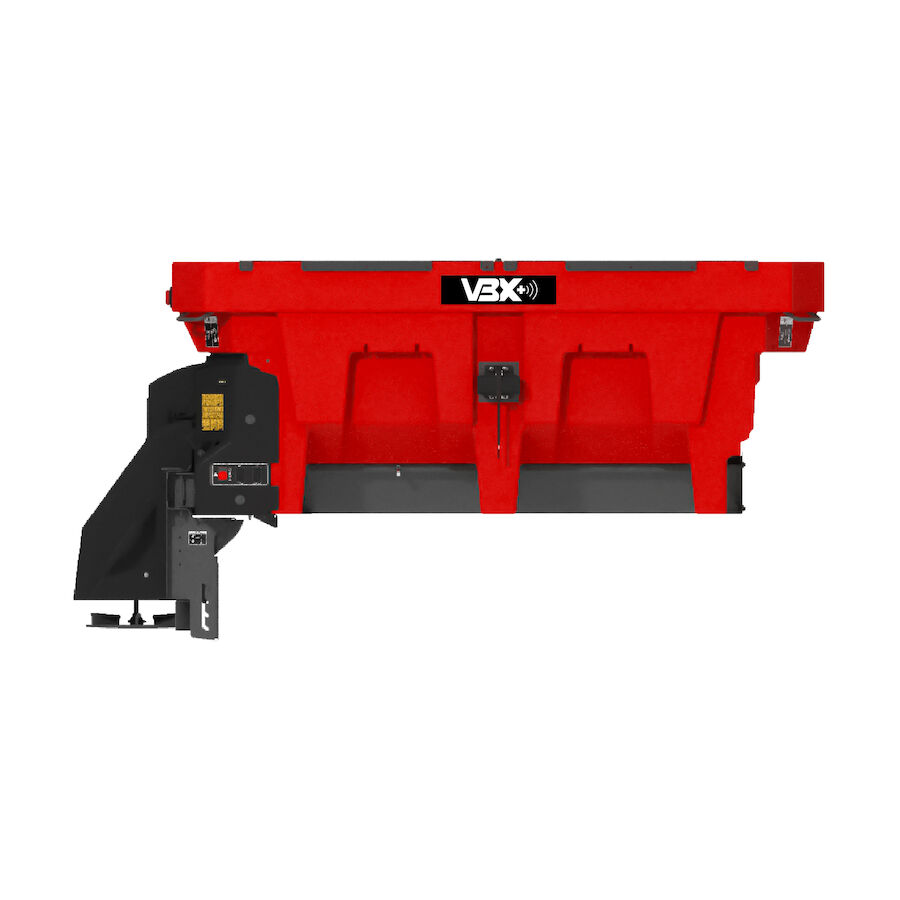

VBX+ 2 Yard Auger
Product Details
Introducing the VBX+ - Where Innovation Meets Performance. Get ready to revolutionize your snow and ice management game with the VBX+, the dawn of spreader technology from BOSS. Designed for the modern contractor, the VBX+ is packed with smart features that put you in control like never before, allowing precise material distribution and seamless job site tracking. The VBX+ 2yd auger is equipped with a deicing capacity of up to two cubic yards, specifically designed for your 3/4-1 ton truck. It is constructed to effectively break through frozen chunks of salt and sand. Say goodbye to downtime with easy-to-maintain components and unrivaled power and performance. With sleek LED lighting, advanced safety features, and intuitive design enhancements, the VBX+ will do Whatever It Takes to Keep ‘Em Open when winter weather strikes. Elevate your operations, embrace the future, and experience the VBX+.
- VBX+ Overview - Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors.
- SPREADER MATERIAL GUIDE -Learn more about the types of spreader material for your equipment.
- Cold Front Technology - Cold Front Technology with a newly designed connector, merging Power/Ground cables and Control wires into one.
Product Features
View All Features
Standard Rate Control
Set spread width and flow rate for precise material distribution, enabling operators to monitor and adjust application levels.
AutoSpread Control
Spread salt without the guesswork. BOSS AutoSpread Control automatically matches material flow to your vehicle speed for precise, consistent spreading. Available on all VBX+ and MBX+ spreaders.
Job Tracking
Track material usage on every job site directly from the controller for customer billing, proof of service, and material supply planning.
Simplified Material Calibration Adjustment
Enables operator precision in material flow control
Controller Operated LED Lighting
Upgraded LED brake lights, work lights, and selectable patterned beacon lights ensure operators are easily seen.
Motor Performance
Upgraded feeder system efficiency and increased spinner power sets new standards beyond the traditional VBX Series.
Future-Ready
Compatible for future BOSS Smart Connected material management solutions and products
Remote Grease Zerks
Remote grease zerks for enhanced maintenance and serviceability
Easy Access Hatch
Facilitate easier access to the motor, enhancing overall serviceability.
Urethane Spinner
for durability and maximum adjustability and spreading efficiency.
Standard Tarp System
VCP tarp with bungee tie-downs comes standard on all VBX spreaders to protect spreading material from the elements.
Reinforced Poly Hopper
Reinforced poly hoppers offer capacities of 1.5, 2, and 3 cubic yards, designed to elevate efficiency and productivity to meet your needs.
Advanced Auger System
Auger Poly Bearing eliminates the need for greasing, reducing downtime and improving ease of use.
VBX+ Overview
Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors.
Learn More
SPREADER MATERIAL GUIDE
Selecting deicing material can be complex and varies widely. Explore the different types of spreader materials suitable for your equipment.
Learn More
Cold Front Technology Electrical System
Cold Front Technology’s newly designed connector, merging Power/Ground Cables and Control Wires into one. Experience effortless operation with Cold Front Technology’s common truck harness integration, allowing your plow and VBX+ to connect to a single, unified harness. This streamlined design ensures immediate, reliable control of all functions, simplifying installation and enhancing overall efficiency.
Learn More
| Specifications | VBX+ 1.5 Yard Auger | VBX+ 1.5 Yard Pintle | VBX+ 2 Yard Auger | VBX+ 2 Yard Pintle | VBX+ 3 Yard Auger | VBX+ 3 Yard Pintle |
|---|---|---|---|---|---|---|
| Capacity | cubic yd 1.5 / cubic m 1.15 | cubic yd 1.5 / cubic m 1.15 | cubic yd 2 / cubic m 1.53 | cubic yd 2 / cubic m 1.53 | cubic yd 3 / cubic m 2.3 | cubic yd 3 / cubic m 2.3 |
| Chute Construction | Polyethylene with Stainless Steel Frame | Polyethylene with Stainless Steel Frame | Polyethylene with Stainless Steel Frame | Polyethylene with Stainless Steel Frame | Polyethylene with Stainless Steel Frame | Polyethylene with Stainless Steel Frame |
| Connectivity | Smart Compatible | Smart Compatible | Smart Compatible | Smart Compatible | Smart Compatible | Smart Compatible |
| Control | Dual Variable Speed Control | Dual Variable Speed Control | Dual Variable Speed Control | Dual Variable Speed Control | Dual Variable Speed Control | Dual Variable Speed Control |
| Deflector | Standard | Standard | Standard | Standard | Standard | Standard |
| Display Type | LCD Display Controller | LCD Display Controller | LCD Display Controller | LCD Display Controller | LCD Display Controller | LCD Display Controller |
| Feed Mechanism | Auger | Pintle/Conveyor Chain | Auger | Pintle/Conveyor Chain | Auger | Pintle/Conveyor Chain |
| Feed Motor | 3/4 HP Feed Motor | 3/4 HP Feed Motor | 3/4 HP Feed Motor | 3/4 HP Feed Motor | 3/4 HP Feed Motor | 3/4 HP Feed Motor |
| Gearbox | Planetary Worm 91:1 | Planetary Worm 137:1 | Planetary Worm 91:1 | Planetary Worm 137:1 | Planetary Worm 91:1 | Planetary Worm 137:1 |
| Grease Hoses | Standard | Standard | Standard | Standard | Standard | Standard |
| Hopper Construction | 3/16" (0.5 cm) Double Wall Polyethylene Hopper | 3/16" (0.5 cm) Double Wall Polyethylene Hopper | 3/16" (0.5 cm) Double Wall Polyethylene Hopper | 3/16" (0.5 cm) Double Wall Polyethylene Hopper | 3/16" (0.5 cm) Double Wall Polyethylene Hopper | 3/16" (0.5 cm) Double Wall Polyethylene Hopper |
| Hopper Cover | VCP Tarp w/ integral tie-downs | VCP Tarp w/ integral tie-downs | VCP Tarp w/ integral tie-downs | VCP Tarp w/ integral tie-downs | VCP Tarp w/ integral tie-downs | VCP Tarp w/ integral tie-downs |
| Hopper Height | 38 in / 96.52 cm | 38 in / 96.52 cm | 38 in / 96.52 cm | 38 in / 96.52 cm | 49 in / 124.46 cm | 49 in / 124.46 cm |
| Hopper Length | 78 in / 198 cm | 78 in / 198 cm | 96 in / 244 cm | 96 in / 244 cm | 108 in / 274 cm | 108 in / 274 cm |
| Hopper Width | 48.25 in / 122.56 cm | 48.25 in / 122.56 cm | 48.25 in / 122.56 cm | 48.25 in / 122.56 cm | 48 in / 121.92 cm | 48 in / 121.92 cm |
| Inverted V-Baffle | Standard | Optional | Standard | Optional | Standard | Optional |
| LED CHSML | Standard | Standard | Standard | Standard | Standard | Standard |
| LED Strobe Lights | Standard (Two) | Standard (Two) | Standard (Two) | Standard (Two) | Standard (Two) | Standard (Two) |
| LED Work Lights | Standard (Two) | Standard (Two) | Standard (Two) | Standard (Two) | Standard (Two) | Standard (Two) |
| Material Conveying Method | 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger | 14" (36 cm) Wide Pintle Chain | 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger | 14" (36 cm) Wide Pintle Chain | 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger | 14" (36 cm) Wide Pintle Chain |
| Max Feed Rate | 150 lbs (70 kg) per minute | 240 lbs (110 kg) per minute | 150 lbs (70 kg) per minute | 240 lbs (110 kg) per minute | 150 lbs (70 kg) per minute | 240 lbs (110 kg) per minute |
| Minimum Bed Length | 66 in (168 cm) | 66 in (168 cm) | 78 in (198 cm) | 78 in (198 cm) | 96 in (243.8 cm) | 96 in (243.8 cm) |
| Spinner | 15 in (38.1 cm) Diameter Poly Spinner | 15 in (38.1 cm) Diameter Poly Spinner | 15 in (38.1 cm) Diameter Poly Spinner | 15 in (38.1 cm) Diameter Poly Spinner | 15 in (38.1 cm) Diameter Poly Spinner | 15 in (38.1 cm) Diameter Poly Spinner |
| Spinner Assembly | Easily Removable/Swing Out and Height Adjustable | Easily Removable/Swing Out and Height Adjustable | Easily Removable/Swing Out and Height Adjustable | Easily Removable/Swing Out and Height Adjustable | Easily Removable/Swing Out and Height Adjustable | Easily Removable/Swing Out and Height Adjustable |
| Spinner Gearmotor | 1/2 HP Spinner Gearmotor (Located above spinner) | 1/2 HP Spinner Gearmotor (Located above spinner) | 1/2 HP Spinner Gearmotor (Located above spinner) | 1/2 HP Spinner Gearmotor (Located above spinner) | 1/2 HP Spinner Gearmotor (Located above spinner) | 1/2 HP Spinner Gearmotor (Located above spinner) |
| Spreader Overall Length | 93.5 in / 237 cm | 93.5 in / 237 cm | 115 in / 292 cm | 115 in / 292 cm | 122 in / 309 cm | 122 in / 309 cm |
| Spreader Switches | Two Dual Function Rocker Switches, E-Stop | Two Dual Function Rocker Switches, E-Stop | Two Dual Function Rocker Switches, E-Stop | Two Dual Function Rocker Switches, E-Stop | Two Dual Function Rocker Switches, E-Stop | Two Dual Function Rocker Switches, E-Stop |
| Spreading Width | 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material | 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material | 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material | 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material | 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material | 8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material |
| Tie-Down Kit | Standard | Standard | Standard | Standard | Standard | Standard |
| Top Screen | Standard | Standard | Standard | Standard | Standard | Standard |
| Trough | 11 ga. Stainless Steel | 11 ga. Stainless Steel | 11 ga. Stainless Steel | 11 ga. Stainless Steel | 11 ga. Stainless Steel | 11 ga. Stainless Steel |
| Vehicle Application | 3/4 T & 1 T | 3/4 T & 1 T | 3/4 T & 1 T | 3/4 T & 1 T | 15,000+ GVWR | 15,000+ GVWR |
| Vehicle to Spreader Connector | Custom Sealed and Overmolded Power & Controls Connector | Custom Sealed and Overmolded Power & Controls Connector | Custom Sealed and Overmolded Power & Controls Connector | Custom Sealed and Overmolded Power & Controls Connector | Custom Sealed and Overmolded Power & Controls Connector | Custom Sealed and Overmolded Power & Controls Connector |
| Vibrator | Standard (Dual Vibrator) | Optional | Standard (Dual Vibrator) | Optional | Standard (Dual Vibrator) | Optional |
| Weight | 640 lbs / 290 kg | 680 lbs / 308 kg | 690 lbs / 313 kg | 730 lbs / 331 kg | 810 lbs / 367 kg | 840 lbs / 381 kg |
