SUPER-DUTY PLOWS

9' Stainless Steel Trip-Edge Super-Duty

Product Number: TRP18475

  No Reviews (BOSS Trustpilot Reviews)


Available SUPER-DUTY PLOWS:

Where to Buy Product Selector



The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

BOSS Trip-Edge snowplows are engineered to power through the heaviest snow and any obstacles that come with it. The extra-rigid moldboard and trip-edge technology ensure that only the cutting edge trips when you hit an obstacle, so you won’t lose the load you’re pushing. Trip-Edge snowplows feature four adjustable trip return springs, so you can customize the trip spring tension for the job at hand.
  • SL3 L.E.D. HEADLIGHTS - 100% L.E.D. system with nearly double the light output of standard halogen systems
  • SMARTSHIELD PAINT - Sets the standard for supreme quality, corrosion protection, and lasting durability.
  • EQUIP YOUR SKID STEER - Crafted to move the toughest snow and whatever obstacles come with it.

Product Features

View All Features
2 Year Limited Warranty

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More
SL3 L.E.D. With Ice Shield

SL3 L.E.D. With Ice Shield

SL3 headlight package, standard on every BOSS truck plow, shines brighter and farther than traditional halogen packages and is equipped with Ice Shield Technology. With best-in-class 100% LED lighting, integrated with Ice Shield Technology to prevent snow and ice build-up on the lens, these headlights use half the amperage of halogen systems and have an 8-10 year life expectancy. The SL3 headlights are also 40% smaller than SmartLight2 lights and yet much more powerful with the signature BOSS premium look you expect.

Learn More
SmartHitch2

SmartHitch2

Designed to be simple and easy to use. Flip, plug, click. The three-step attachment process makes it easy to switch between plows.
SmartShield

SmartShield

Made to last the SmartShield paint system delivers superior corrosion protection and a long-lasting, high-gloss shine.

Learn More
SmartTouch2

SmartTouch2

Advanced control technology combined with ergonomic control features and large backlit buttons make BOSS controls highly intuitive and easy to use. Attach the versatile SmartTouch2 Handheld Control to a pedestal mount or mount it on your dash (with or without handle).
Discover the functions of BOSS SmartTouch2 and Joystick controllers with this easy-to-follow guide.

Learn More
Chainless Hydraulic Lift

Chainless Hydraulic Lift

The chainless hydraulic cylinder lifting system from BOSS uses a chainless, hydraulic lift system, which greatly reduces snowplow bounce and provides full float capabilities.
Enclosed Hydraulics

Enclosed Hydraulics

Delivers speed and reliability and is protected from the elements to prevent corrosion and hydraulic freeze-up.
Reinforced Moldboard

Reinforced Moldboard

Diagonal cross-bracing and formed bottom channel increase blade rigidity.
Cast-Iron Plow Shoes

Cast-Iron Plow Shoes

Provide extended wear resistance compared to steel shoes.
Adjustable Trip Spring

Adjustable Trip Spring

Adjustable trip springs allow you to customize the trip spring tension.
BOSS Snowplows utilize three types of tripping systems. Click the link to learn about the differences between each.

Learn More
High-Strength Pivot Pin

High-Strength Pivot Pin

Lasts longer, increasing the life of the plow.
BOSS 500 HR Chrome Plated Cylinders

BOSS 500 HR Chrome Plated Cylinders

Made to last, our 500-hour rated chromium-plated angle cylinders replace other, less effective applications. Delivering advanced corrosion protection so you can continue Restoring Order for years to come.
EQUIP YOUR SKID STEER

EQUIP YOUR SKID STEER

Equip your Skid Steer with reliable trip-edge super-duty performance.

Learn More

Specifications 7'6" Steel Full-Trip Super-Duty 8' Steel Full-Trip Super-Duty 8'6" Steel Full-Trip Super-Duty 9' Steel Full-Trip Super-Duty 7'6" Poly Full-Trip Super-Duty 7'6" Steel Trip-Edge Super-Duty 8' Steel Trip-Edge Super-Duty 9' Steel Trip-Edge Super-Duty 8' Stainless Steel Trip-Edge Super-Duty 9' Stainless Steel Trip-Edge Super-Duty
Angle Cylinders 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm) 1.5 in. x 10 in. (4 cm x 25 cm)
Attachment System SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2
Blade Height 29 in (74 cm) 29 in (74 cm) 29 in (74 cm) 29 in (74 cm) 29 in (74 cm) 31 in (79 cm) 31 in (79 cm) 31 in (79 cm) 31 in (79 cm) 31 in (79 cm)
Blade Material Steel Steel Steel Steel Poly Steel Steel Steel Stainless Steel Stainless Steel
Blade Size 7 ft. 6 in. 8 ft. 8 ft. 6 in. 9 ft. 7 ft. 6 in. 7 ft. 6 in. 8 ft. 9 ft. 8 ft. 9 ft.
Blade Thickness 11-ga Steel 11-ga Steel 11-ga Steel 11-ga Steel 0.375 in. (0.95 cm) Poly 11-ga Steel 11-ga Steel 11-ga Steel 14-ga 304 Stainless 14-ga 304 Stainless
Blade Width | Curb Guard Width 90 in. (229 cm) 96 in. (244 cm) 102 in. (259 cm) 108 in. (274 cm) 90 in. (229 cm) 90 in. (229 cm) 96 in. (244 cm) 108 in. (274 cm) 96 in. (244 cm) 108 in. (274 cm)
Cutting Edge 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) High Performance 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm) 1/2 in x 6 in (1.3 cm x 15 cm)
D-Force Optional Optional Optional Optional Optional
Lift Cylinder 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)
Lighting SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology
Plow Shoes Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
Plow Type Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade Straight-Blade
Plowing Width at 30 degree Angle 78" (198 cm) 83" (211 cm) 88" (224 cm) 93 1/2" (238 cm) 78" (198 cm) 78" (198 cm) 83" (211 cm) 93 1/2" (238 cm) 83" (211 cm) 93 1/2" (238 cm)
Reinforcement Ribs 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 7 Vertical, 2 Diagonal 6 Vertical, 2 Diagonal 6 Vertical, 2 Diagonal 8 Vertical, 2 Diagonal 6 Vertical, 2 Diagonal 8 Vertical, 2 Diagonal
Shock Absorber 1 1 1 1 1
Trip Mechanism Full-Trip Full-Trip Full-Trip Full-Trip Full-Trip Trip-Edge Trip-Edge Trip-Edge Trip-Edge Trip-Edge
Trip Springs 4 4 4 4 4 4 4 4 4 4
Truck Applications 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton 3/4 & 1 Ton
Vehicle Truck Truck Truck Truck Truck Truck Truck Truck Truck Truck
Weight 680 lbs / 308 kg 698 lbs / 317 kg 720 lbs / 327 kg 742 lbs / 337 kg 706 lbs / 320 kg 772 lbs / 350 kg 788 lbs / 357 kg 827 lbs / 375.12 kg 849 lbs / 385 kg 897 lbs / 407 kg

Accessories

9' Straight Blade Turf Defender

Product Number: STB27703

$270.00 MSRP

BOSS Rotating LED Beacon

Product Number: MSC25039

$214.00 MSRP

Straight-Blade SmartTouch2 Controller

Product Number: STB09602

$360.00 MSRP

Straight-Blade Joystick Controller

Product Number: STB03191

$330.00 MSRP

SmartTouch2 Control Dash Mount Kit

Product Number: MSC09660

$71.00 MSRP

Pedestal Mount SmartTouch2 Kit

Product Number: MSC09658

$154.00 MSRP

Straight Blade Curb Guard Kit, Passenger Side

Product Number: STB03394

$199.00 MSRP

Straight Blade Curb Guard Kit, Driver Side

Product Number: STB03395

$199.00 MSRP

Straight Blade Emergency Parts Kit

Product Number: STB16187

$420.00 MSRP

13 Pin connector Plug Lock

Product Number: MSC16185

$21.00 MSRP

Parts

Cutting Edge Bolt Kit, 5/8" Bolt, Nut, Washer (QTY 10 ea)

Product Number: BAX00096

$35.63 MSRP

Trip-Edge Cast Iron Plow Shoe w/ Hardware

Product Number: TRP07880

$72.10 MSRP

Hydraulic Hose 3/8" x 34", 3/8MP x 1/4MP

Product Number: HYD01810

$36.75 MSRP

Hydraulic Hose 1/4" x 15-1/2", 1/4MP x 1/4MP

Product Number: HYD01695

$19.47 MSRP

Hydraulic Hose 1/4" x 18", 3/8MOR x 1/4MP

Product Number: HYD09922

$29.17 MSRP

Valve, Cartridge, SmartHitch

Product Number: HYD07047

$94.27 MSRP

Valve, Cartridge, Lift/Angle SAE#8

Product Number: HYD01637

$104.96 MSRP

Motor Kit 12V

Product Number: HYD09328

$372.45 MSRP

Power Unit Solenoid Kit

Product Number: HYD01633

$46.71 MSRP

13 Pin Pigtail Connector - Plow Side

Product Number: MSC04754

$73.17 MSRP

13 Pin Pigtail Connector - Vehicle Side

Product Number: MSC04753

$73.17 MSRP

SmartHitch Torsion Spring Kit (QTY 2)

Product Number: MSC05076

$17.97 MSRP

Trip/ Return Spring 14 1/2"

Product Number: MSC01509

$34.18 MSRP

Blade Guide Kit (2) Guides w/ Hardware

Product Number: MSC01870

$32.24 MSRP

FLUID,HYDRAULIC, 1 CASE OF 4 GALLONS

Product Number: HYD01688X001

$166.45 MSRP

Hydraulic Fluid 1 Case of 12 Quarts

Product Number: HYD01704X001

$149.79 MSRP

Blade Warning Decal

Product Number: MSC01868

$2.55 MSRP

Smart Shield Blade Decal

Product Number: MSC01874

$3.45 MSRP

Attachment Decal RT3 Straight Blade

Product Number: MSC06354

$3.45 MSRP
Where to Buy

8'2 and 9'2 V-blade Stainless Steel BOSS Logo Decal

Product Number: MSC18158

$24.25 MSRP

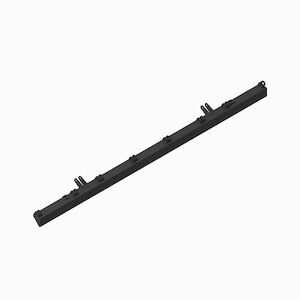

9' Super Duty Top Channel

Product Number: STB18543-03

Where to Buy

Lower T-Lever, Trip-Edge Plow

Product Number: TRP07807

$92.09 MSRP

Trip Edge Upper T-Lever, One Piece

Product Number: TRP08254-03

$24.38 MSRP

CYLINDER,ANGLE,STRAIGHT BLADE,500 HR

Product Number: HYD19031

$233.81 MSRP

Lift Cylinder RT3, Repairable

Product Number: HYD09430

$221.45 MSRP
