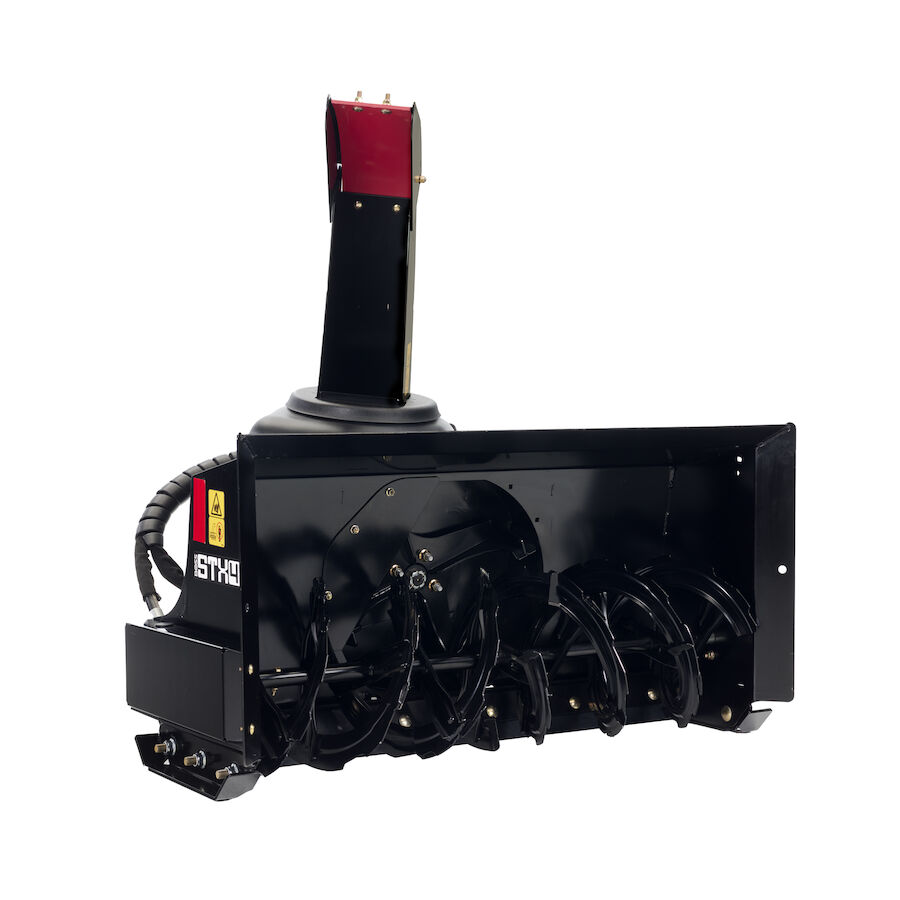

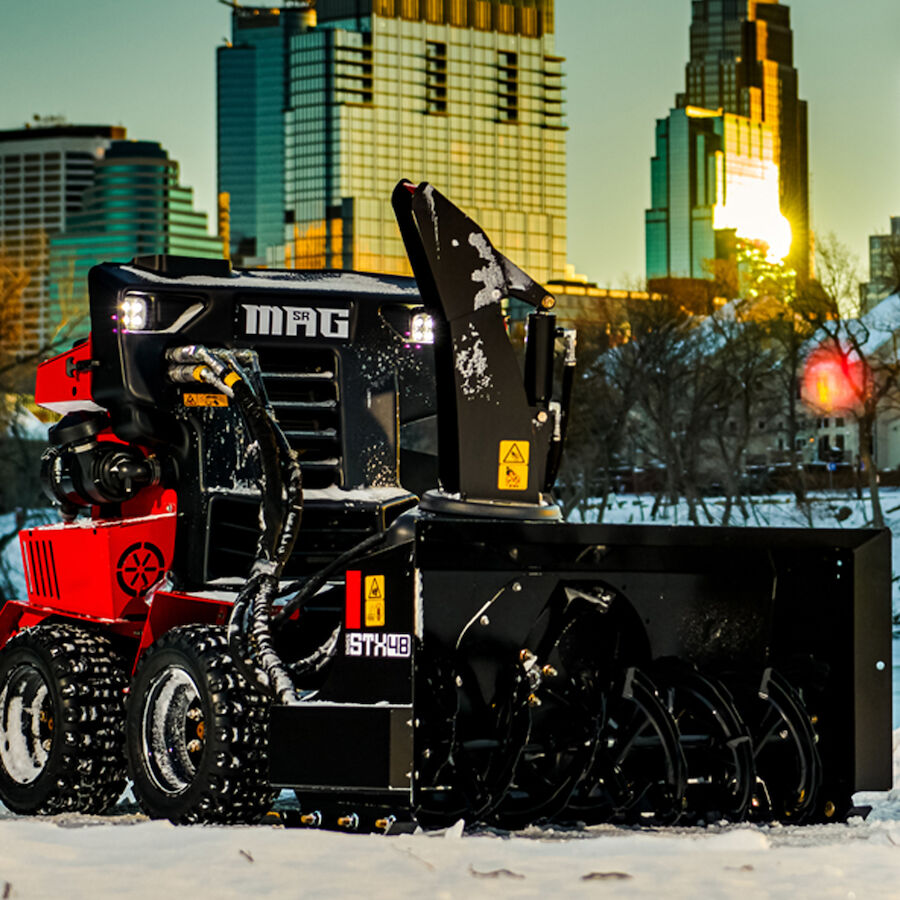

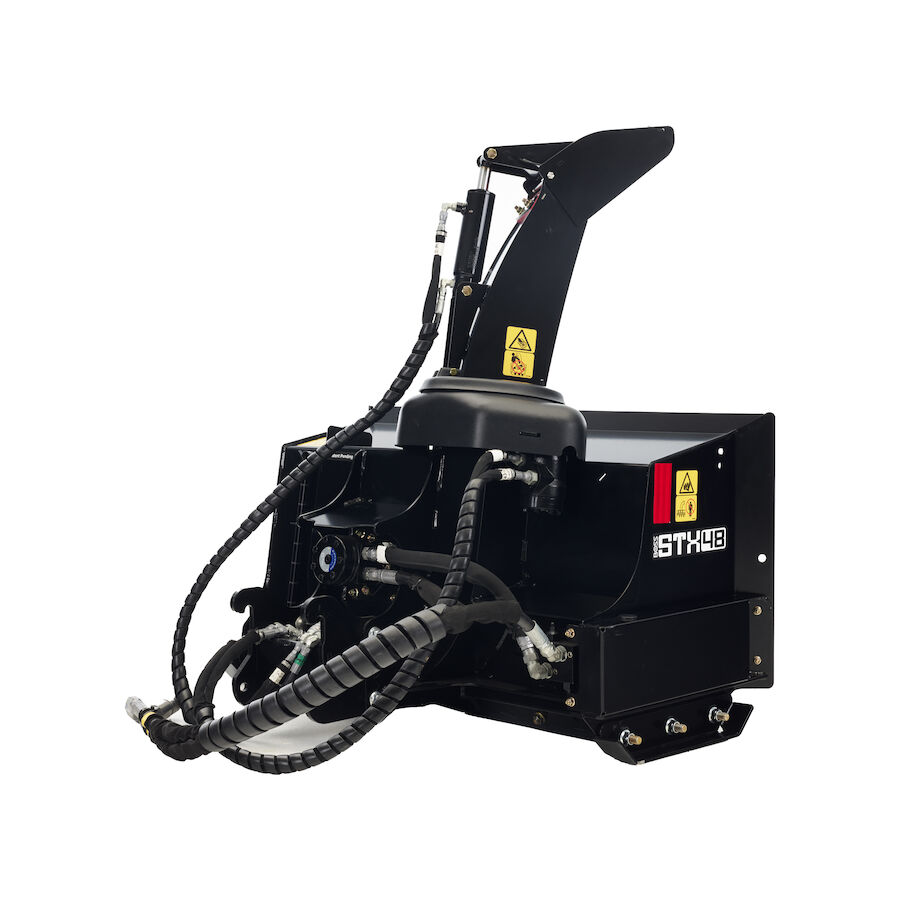

SR MAG 48" Snow Thrower

Product Number: STX24410

  No Reviews (BOSS Trustpilot Reviews)

Where to Buy Brochure



The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

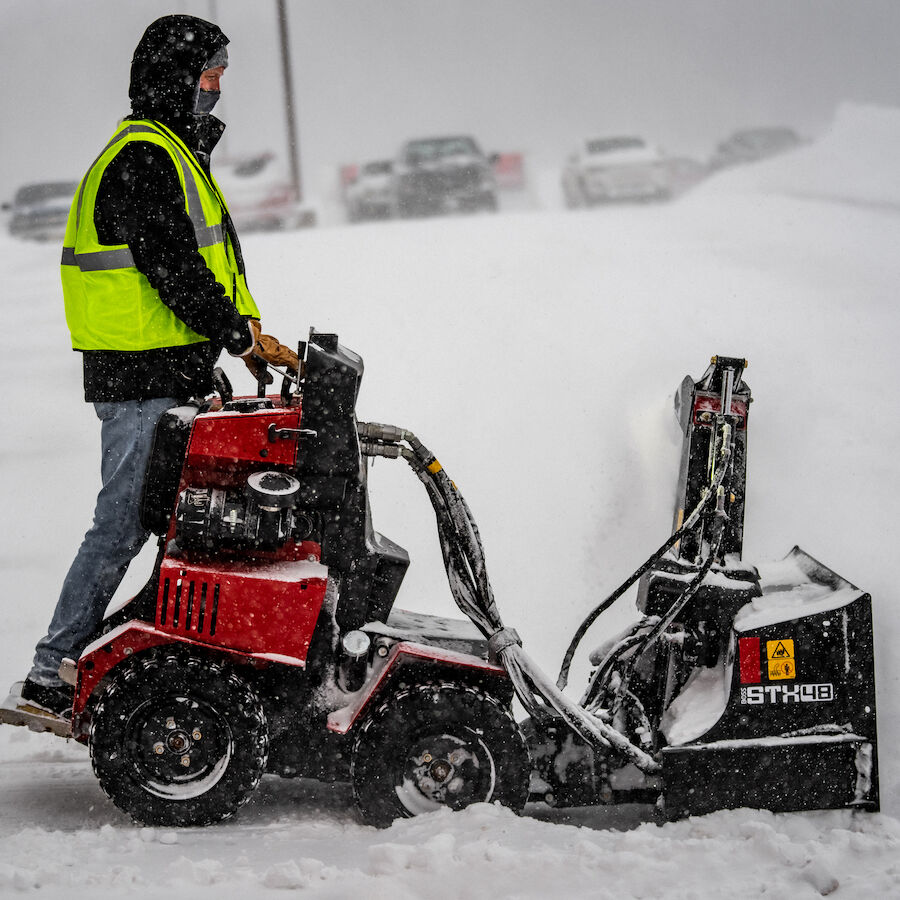

When it comes to moving snow, the SR MAG’s snow thrower STX48 delivers. A system designed to process more snow even faster, the snow thrower features a 2500 psi motor that produces 750 rpms and 14.5 horsepower ­— moving snow between two and 35 feet. Designed with the BOSS trusted float system and D-Force as standard features for all attachments, the vehicle side hydraulics make operating attachments easy.
  • Snowrator Builder - Outfit your Snowrator or SR Mag the way you need to take on winters worst.

Product Features

View All Features
Snowrator Builder product studio image

Snowrator Builder

Build your Sidewalk Vehicle with the Snowrator Builder at your price today! The Snowrator builder allows you to choose through an arsenal of implements, attachments, and accessories you'll need to make your job easier.

Learn More
BOSS 500 HR Chrome Plated Cylinders

BOSS 500 HR Chrome Plated Cylinders

Made to last, our 500-hour rated chromium-plated angle cylinders replace other, less effective applications. Delivering advanced corrosion protection so you can continue Restoring Order for years to come.

Specifications SR MAG 48" Snow Thrower
Auger Diameter 14 in. / 35.5 cm
Chute Deflector Hyrdraulic
Chute Rotation Hydraulic, 210 Degrees
Height 47 in (119.3 cm) to 51 in (129.5 cm) (Depends On Tilt Position)
Impeller (Fan) Diameter 18" ( 45.7 cm)
Overall Width, Straight 48 in. (121.9 cm)
Shear Pins/Bolts Not Required, Hydraulic Relief Valve Protection
Snow Cut Depth 26" (66 cm)
Throwing Distance 2 - 40 ft (0.6m - 12.2m)
Weight, Created For Shipping 450 lbs / 204 kg
Working Width, Straight 48 in. (121.9 cm)

Parts

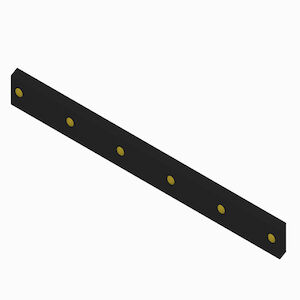

STX48 Cutting Edge Kit With Hardware

Product Number: 143-5142

$199.54 MSRP

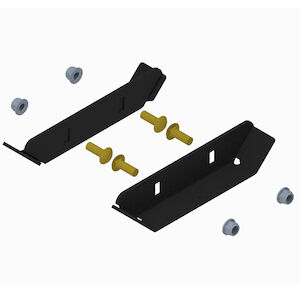

STX48 Shoe Kit With Hardware

Product Number: 143-5135

$206.82 MSRP

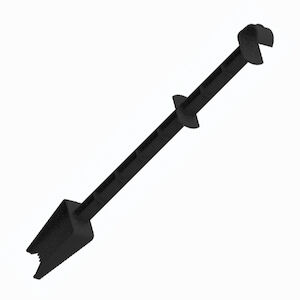

Cleanout Stick

Product Number: 110-3408

$14.69 MSRP

Hex Flange (HF) Nut

Product Number: 32128-23

Where to Buy

Flange Nut

Product Number: 130-6655

Where to Buy

Nut Hf Ni Gr Assembly with Org

Product Number: 139-2430

$0.49 MSRP

Carriage Screw

Product Number: 3230-23

Where to Buy

Carriage Screw

Product Number: 3233-4

Where to Buy

Carriage Screw

Product Number: 3231-28

Where to Buy

Hex Head Flange (HHF) Nut

Product Number: 131-0703

Where to Buy

Plug Grommet

Product Number: 136-5444

$3.95 MSRP

Bearing Flange 2 Bolt

Product Number: 107-7851

$58.89 MSRP

ADAPTER-HYD

Product Number: 100-4749

Where to Buy

BUSHING,FLANGE,0.5 ID, 0.594 OD

Product Number: MSC23073

$2.88 MSRP

STX48 Chute Base Cover

Product Number: 143-2737

$74.87 MSRP

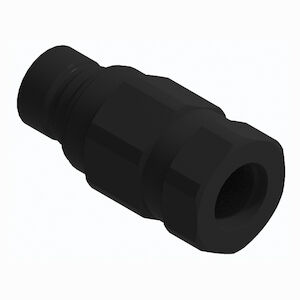

Hydraulic Coupler ORB-8F X QDC-8F

Product Number: 143-3688

$37.87 MSRP

Hydraulic Motor

Product Number: 143-3208

$427.23 MSRP
Where to Buy

STX48 Impeller Plate

Product Number: 143-2627-03

$31.55 MSRP
Where to Buy

50 CC Hydraulic Motor

Product Number: 143-2907

$894.91 MSRP
Where to Buy

Right Hand GS-48 Auger

Product Number: 140-5410-03

$290.82 MSRP

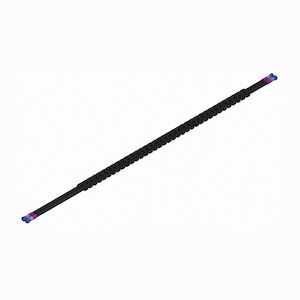

Auger Shaft

Product Number: 143-3116

$94.70 MSRP

STX48 Angle Hose Bundle

Product Number: 143-2509

$193.85 MSRP

Chute Assembly With Decals

Product Number: 143-2628

$267.37 MSRP
Where to Buy

Left Hand 48 Inch GrandStand Auger

Product Number: 140-5420-03

$290.82 MSRP

STX48 Tilt Hose Bundle

Product Number: 143-2508

$218.35 MSRP

Impeller STX48

Product Number: 143-2630-03

$227.91 MSRP

Chain 56 Links

Product Number: 143-2765

$18.68 MSRP

Auger Warning Decal

Product Number: 139-8896

Where to Buy

Hydraulic Motor

Product Number: 143-3194

$374.32 MSRP

STX48 Decal

Product Number: 143-2575

$21.42 MSRP
Where to Buy

STX48 Chute Tilt

Product Number: 143-3186-03

$82.40 MSRP
Where to Buy

24T Sprocket

Product Number: 143-2958

$17.00 MSRP
Where to Buy

Impeller Warning Decal

Product Number: 144-1299

Where to Buy

Decal - Removed Cover

Product Number: MSC27245

$4.00 MSRP
Where to Buy

STX48 Attachment Mount

Product Number: 143-2763-03

$167.82 MSRP

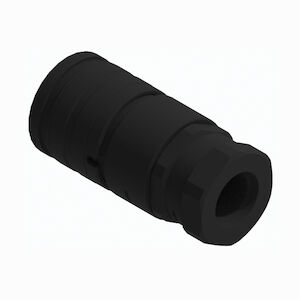

COUPLER-HYD [ORB-8F X QDC-8F]

Product Number: 143-3689

$60.51 MSRP

STX48 HI-Flow Hose Bundle

Product Number: 143-2515

$377.66 MSRP

STX48 Chute Clamp Plate

Product Number: 143-2915-03

$22.85 MSRP

Warning Decal

Product Number: 139-8895

Where to Buy

STX48 Chute Top Cover

Product Number: 143-2740

$58.66 MSRP

STX48 Chain Cover

Product Number: 143-3118-03

$45.32 MSRP
Where to Buy

Motor Mount

Product Number: 143-3203-03

$38.17 MSRP
Where to Buy

HUB-WHEEL, 4 LUG, 1-1/4" TAPER

Product Number: 143-6791

$49.99 MSRP
