VBX

VBX 6500 Pintle

Product Number: VBS15160C


Available VBX:

Where to Buy Product Selector



The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

Our complete line of VBX spreaders feature ease of use and maximum productivity for years of operation in harsh winter conditions—the VBX 6500 pintle system performs just as powerfully and reliably as the others in a mid-sized package. Built with the versatility to spread various types of material, so you can do WHATEVER IT TAKES to control ice like a BOSS.

Product Features

View All Features
Motor Control And LCD Screen

Motor Control And LCD Screen

for ease of use, reliability and good looks.
Stainless Steel Motor

Stainless Steel Motor

for corrosion resistance, reduced maintenance and longer life.
Strong Poly Hoppers

Strong Poly Hoppers

with 1.5, 2 & 3 cubic yards of capacity.
Remote Light Switch

Remote Light Switch

Easily turn spreader lights on and off from inside the vehicle cab and at the rear of the spreader.
Urethane Spinner

Urethane Spinner

for durability and maximum adjustability and spreading efficiency.
2 Year Limited Warranty

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More
Pintle Chain Feed

Pintle Chain Feed

Pintle chain spreaders allow you to spread sand and sand/ salt mix to meet the needs of your winter conditions.

Learn More
Standard Tarp System

Standard Tarp System

VCP tarp with bungee tie-downs comes standard on all VBX spreaders to protect spreading material from the elements.

Specifications VBX 9000 Pintle VBX 9000 Auger VBX 8000 Pintle VBX 8000 Auger VBX 6500 Pintle VBX 6500 Auger VBX 3000 Auger
Adjustable Deflector Standard Standard Standard Standard Standard Standard Standard
Capacity cubic yd 3 / cubic m 2.3 cubic yd 3 / cubic m 2.3 cubic yd 2 / cubic m 1.53 cubic yd 2 / cubic m 1.53 cubic yd 1.5 / cubic m 1.15 cubic yd 1.5 / cubic m 1.15 cubic yd .44 / cubic m .33
Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control Dual Variable Speed Control
Display Type LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller LCD Display Controller Dual Variable Speed LED Digital Controller
Feed Mechanism Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Pintle/Conveyor Chain Auger Auger
Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 3/4 HP SS Feed Motor 1/4 HP Feed Motor
Gearbox Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Planetary Worm 137:1 Planetary Worm 91:1 Worm 40:1
Hopper Construction 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper 3/16" (0.5 cm) Double Wall Polyethylene Hopper
Hopper Cover VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs VCP Tarp w/ integral tie-downs
Hopper Height 49 in. / 124.46 cm 49 in. / 124.46 cm 38 in. / 96.52 cm 38 in. / 96.52 cm 38 in. / 96.52 cm 38 in. / 96.52 cm 28 in. / 71.12 cm
Hopper Length 107 in / 272 cm 107 in / 272 cm 96 in / 244 cm 96 in / 244 cm 78 in / 198 cm 78 in / 198 cm 33.5 in / 85 cm
Hopper Tie-Down Kit Standard Standard Standard Standard Standard Standard Standard
Hopper Width 48 in / 121.92 cm 48 in / 121.92 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 48.25 in / 122.56 cm 50 in / 127.00 cm
Inverted V Baffle Optional Standard Optional Standard Optional Standard Standard
LED CHSML Standard Standard Standard Standard Standard Standard N/A
Lighting Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Dual 55 watt halogen variable output work lights (Standard), dual LED work lights (optional) Single 55 watt halogen (Standard), single LED work light (optional)
Material Conveying Method 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger 14" (36 cm) Wide Pintle Chain 6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger Shaftless Auger 4" OD (10 cm) x 4" (10 cm) Pitch
Max Feed Rate 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 4 cu ft (0.11 cu m) per minute 2.3 cu ft (0.06 cu m) per minute 0.8 cu ft (0.02 cu m) per minute
Minimum Bed Length 96 in (243.8 cm) 96 in (243.8 cm) 78 in (198 cm) 78 in (198 cm) 66 in (168 cm) 66 in (168 cm) 33.5 in (85 cm)*
Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 14.5 in (36.8 cm) Diameter Poly Spinner 12 in (31 cm) Diameter Poly Spinner
Spinner Assembly Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable/Swing Out and Height Adjustable Easily Removable
Spinner Gearmotor 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner) 1/8 HP Spinner Gearmotor (Located above spinner)
Spreader Overall Length 122 in / 309 cm 122 in / 309 cm 115 in / 292 cm 115 in / 292 cm 93.5 in / 237 cm 93.5 in / 237 cm 52 in / 132 cm
Spreading Width 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material 2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material
Top Screen Standard Standard Standard Standard Standard Standard Standard
Trough 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 11 ga. Stainless Steel 14 ga. Stainless Steel
Vehicle Application 15,000+ GVWR 15,000+ GVWR 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 3/4 T & 1 T 1,000 Bed Capacity
Vibrator Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Optional Standard (Dual Vibrator) Standard (Single Vibrator)
Weight 760 lbs / 345 kg 710 lbs / 322 kg 650 lbs / 295 kg 600 lbs / 272 kg 600 lbs / 272 kg 550 lbs / 249 kg 230 lbs / 104 kg

Accessories

Inverted V Kit VBX 6500

Product Number: VBS15140

$383.98 MSRP

Dual Vibrator Kit Current VBX6500 & Old Style VBX

Product Number: VBS17399

$510.00 MSRP

Dual Vibrator Kit VBX8000 & VBX9000

Product Number: VBS17730

$510.00 MSRP

Back Up Camera

Product Number: MSC21970

$550.00 MSRP
Where to Buy

VBX LED Work Light Kit

Product Number: MSC17652

$145.00 MSRP

Pre Wet Kit

Product Number: MSC20100

Where to Buy

License Plate Light Kit VBX & FORGE

Product Number: MSC22900

$163.43 MSRP

VBX & Forge Pintle Feed Gate Assembly

Product Number: VBS17297

$45.81 MSRP

Parts

4 GA Power/Ground Cable, Spreader Side, VBS

Product Number: VBS14285

$67.04 MSRP

Gromit 3/8" ID, 3/16" GW, 3/4" GD, 1-1/16" OD

Product Number: MSC19344

$5.82 MSRP

3/4" ID x 1-1/8" OD x 5/16" Double Lip Shaft Seal, TGS

Product Number: TGS05809

$10.75 MSRP

Spreader Harness Dust Cap, VBX

Product Number: VBS14267

$8.28 MSRP

Spinner Harness, Spreader Side

Product Number: MSC14284

$36.00 MSRP

2" x 10' Ratchet Strap, VBX

Product Number: VBS14547

$48.17 MSRP

Truck Harness Dust Cap, VBS

Product Number: VBS14266

$8.28 MSRP

150 AMP Mega Fuse, In-Line

Product Number: MSC13177

$14.68 MSRP

Spinner Harness Jumper

Product Number: MSC14024

$22.66 MSRP

BRKT- DEFLECTOR, SPREADER

Product Number: MSC17203

$12.33 MSRP

VBX Truck Side Harness

Product Number: VBS14283

$285.68 MSRP

Adjustable Deflector, VBS

Product Number: VBS14039

$33.57 MSRP

Spinner Motor Shaft 3/4, VBS

Product Number: VBS14008

$32.72 MSRP

UTV 55W Halogen Headlight

Product Number: MSC12249

$77.92 MSRP

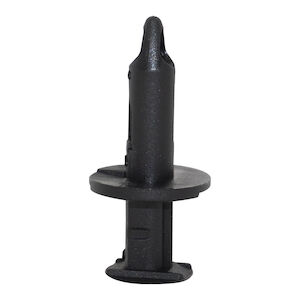

8MM x 26MM Stem, 20MM Flange Push Clip

Product Number: HDW09299

$4.66 MSRP

Pre-Wet Capable Controller

Product Number: MSC17990

$797.45 MSRP

Inline Fuse Holder (Mega Fuse)

Product Number: MSC13176

$37.27 MSRP

Tapered Pin

Product Number: VBS14180

$16.92 MSRP

Control Mount Upper Bracket, VBX

Product Number: VBS14461-03

$9.15 MSRP

3/4" 2-Bolt Flange Bearing, 2-Stage, TGS, VBX, Forge

Product Number: TGS15532

$35.16 MSRP

Control Mount Lower Bracket, VBX

Product Number: VBS14460-03

$9.30 MSRP

TGS Spinner Motor, High Speed 10:1, 2004+

Product Number: TGS05898

$694.29 MSRP

14.5 Urethane Spinner, VBS

Product Number: VBS14017

$94.22 MSRP

5/16"-18 Threaded Knob

Product Number: HDW14016

$11.61 MSRP

Light/Switch Harness, Spreader Side, VBS

Product Number: VBS14309

$56.80 MSRP

Rear Light, VBX

Product Number: VBS14548

$68.72 MSRP

JUMPER PLUG, MAIN HARNESS, VBS

Product Number: VBS17637

$6.69 MSRP

Leg Bolt Plate, VBX

Product Number: VBS14517

$2.75 MSRP

Tie-Down Bed Mount Support, VBX

Product Number: VBS14550

$2.90 MSRP

Poly Spinner Housing Bottom, VBX

Product Number: VBS14007

$133.05 MSRP
Where to Buy

VBX Spreader Side Wiring Harness

Product Number: VBS17880

$135.45 MSRP

Tie-Down Hardware Kit, VBX

Product Number: VBS14552

$11.80 MSRP

Spinner Plate Motor Mount, VBS

Product Number: VBS14010

$89.55 MSRP

VBX Tie Down Kit

Product Number: VBS14551

$302.08 MSRP

SPINNER MNT, ADJ ASM, [WELD]

Product Number: VBS17720

$350.00 MSRP

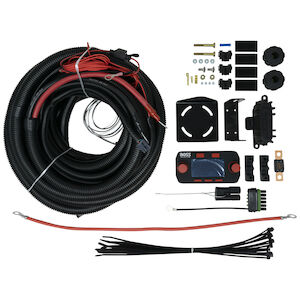

18+ VBX PreWet Ready Control Kit

Product Number: VBS14001C

$1,049.57 MSRP

1-1/4"ID x 1-1/2"OD x 3/16" Groove Grommet

Product Number: MSC14559

$4.20 MSRP

Stainless Steel Vbox Chute, VBS

Product Number: VBS14450

$128.24 MSRP

Battery Cable 24, Red, 6 Gauge

Product Number: HYD12814

$9.89 MSRP

Support Rod, VBX 6500/8000/9000 Spinner Assembly

Product Number: VBS14037

$25.71 MSRP

Lift Strap Bar, VBS

Product Number: VBS14038

$38.55 MSRP
Where to Buy

VBX AUGER FRONT COVER

Product Number: VBS14571

Where to Buy

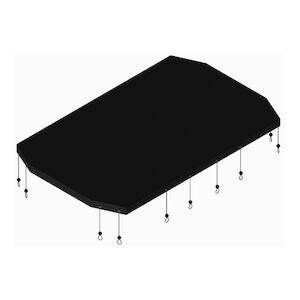

6.5' Tarp with Bungees, VBX

Product Number: VBS15175

$305.05 MSRP

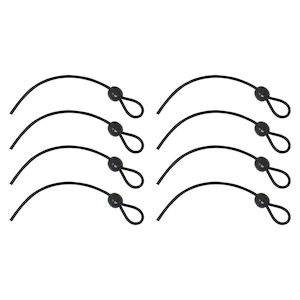

Tarp Tie-Down Assembly Kit with 8 Bungees, VBX

Product Number: VBS15325

$47.65 MSRP

HOPPER, 1.5 CU YD, VBS

Product Number: VBS15149

Where to Buy

COVER, T-SLOT,REAR, PINTLE, VBS

Product Number: VBS14223

$39.20 MSRP

Rear Idler Shaft, Pintle Chain, VBS

Product Number: VBS14407

$103.69 MSRP

Pintle Chain Takup Bearing Cover, VBX

Product Number: VBS14518

$26.85 MSRP

Front Drive Shaft, Pintle Chain, VBS

Product Number: VBS14408

$94.22 MSRP

Mounting Bar Drop Pan Sweeper, VBX

Product Number: VBS14537

$5.95 MSRP

Pintle Sweeper, Poly, VBX

Product Number: VBS14523

$20.40 MSRP

FEED PLT EXTENSION,PINTLE CHAIN

Product Number: VBS17372

$29.46 MSRP

1-1/4" Coupling, VBX

Product Number: VBS14538

$17.14 MSRP

Gearbox PGW162,137 4:1 With Planetary

Product Number: VBS14471

$1,355.20 MSRP

Pintle Drop Pan Handle Assembly, VBX

Product Number: VBS14522

$25.27 MSRP

Pintle Pin Lock Assembly, VBX

Product Number: VBS14610

$96.51 MSRP

O-RING [4.50 X .063] BUTYL

Product Number: MSC17765

$1.64 MSRP
Where to Buy

Non-Pre-Wet Power Control Module

Product Number: MSC18250

$522.84 MSRP

VBS 12MM Momentary Switch Kit

Product Number: MSC14274

$33.44 MSRP

PRE-WET SPREADER POWER CONTROL MODULE

Product Number: MSC18270

$522.84 MSRP

6-Pin Connector, Spreader Side

Product Number: VBS14272

$75.66 MSRP

6-Pin Connector, Vehicle Side

Product Number: VBS14273

$75.66 MSRP
